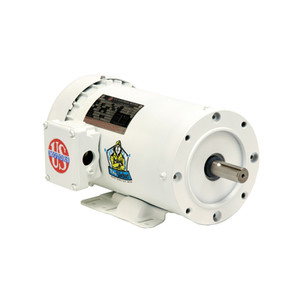

US Motors (Nidec), AC Motor, D5P2D, 5 HP, 1800 RPM, Three Phase, 208-230/460 & 190/380 V, 60 , 50 Hz, 184T (D5P2D)

US Motors (Nidec), AC Motor, D5P2D, 5 HP, 1800 RPM, Three Phase, 208-230/460 & 190/380 V, 60 , 50 Hz, 184T (D5P2D)

Brand:
US Motors (Nidec)
Model:
D5P2D
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
FH82
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
General Purpose
Horsepower Rating:
5 HP
Synchronous RPM:
1800 RPM
Frame Size:
184T
Rated Supply Voltage:
208-230/460 & 190/380 V
Motor Enclosure Type:
Open Drip Proof (ODP)
Motor Design Class:
B
Full Load Torque:
14.9
Rated Voltage:
208 V
Rated Voltage:
230 V
Rated Voltage:
380 V
Rated Voltage:
460 V
Phase:
Three Phase
Service Factor:
1.15
Insulation Class:
F
Duty Cycle:
Continuous
Efficiency:
89.5%
Construction:
Rolled Steel
C Dimension:
13.6
Bearing Type:
6206-2Z-J/C3
Rated Input Frequency:
60 Hz
Rated Input Frequency:
50 Hz
Motor Full Load Amps:
13.7-12.4/6.2 A

Product Information

US Motors (Nidec) Series

5 HP, 1765 & 1450 RPM, D5P2D, 208-230/460 & 190/380 V, 60 & 50 HZ, 184T
