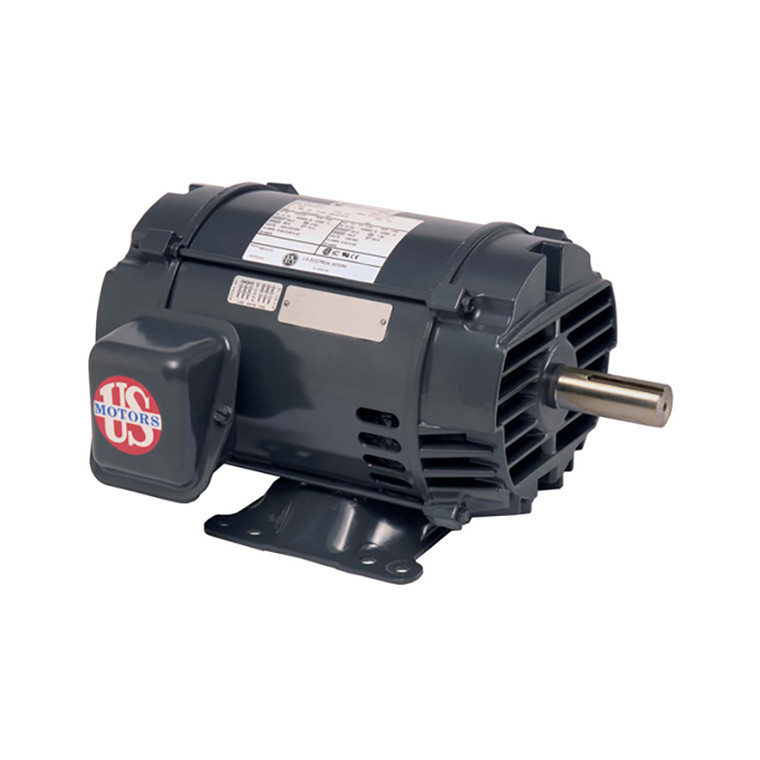

US Motors (Nidec), AC Motor, D40P3G, 40 HP, 1200 RPM, Three Phase, 575 V, 60 Hz, 364T (D40P3G)

Brand:
US Motors (Nidec)
Model:
D40P3G
Condition:
New
0 Customer Reviews
Out Of Stock
Adding to cart… The item has been added

Technical Specifications

Model:
D40P3G
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
General Purpose
Horsepower Rating:
40 HP
Synchronous RPM:
1200 RPM
Rated RPM:
1190 RPM
Frame Size:
364T
Rated Supply Voltage:
575 V
Motor Enclosure Type:
Open Drip Proof (ODP)
Motor Design Class:
B
Full Load Torque:
176.4
Rated Voltage:
575 V
Phase:
Three Phase
Service Factor:
1.15
Insulation Class:
F
Duty Cycle:
Continuous
Efficiency:
94.5%
Construction:
Cast Iron
C Dimension:
28.6
Bearing Type:
6212-2Z-J
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
37 A

Product Information

US Motors (Nidec) Series

40 HP, 1190 RPM, D40P3G, 575 V, 60 HZ, 364T
