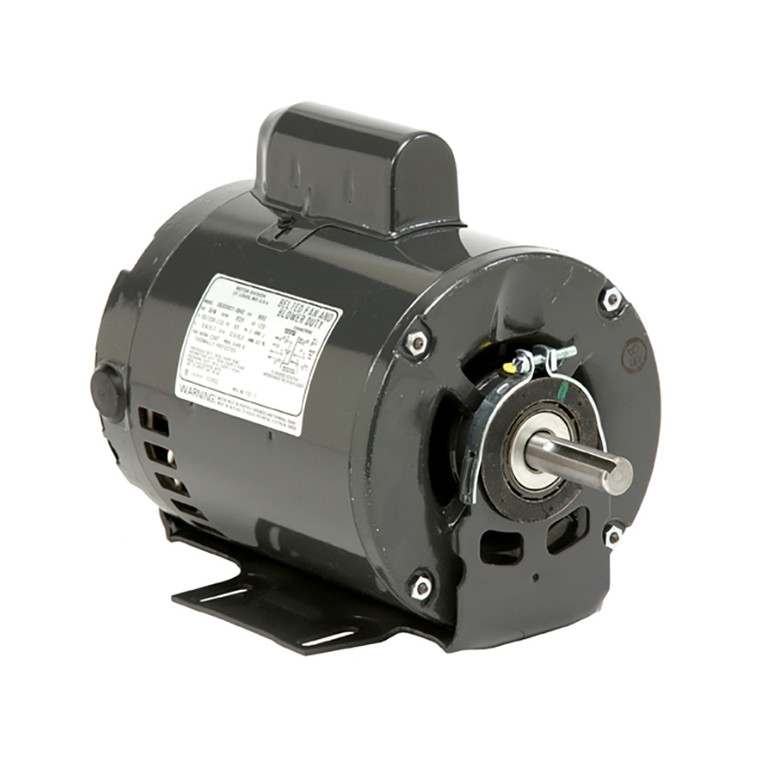

US Motors (Nidec), AC Motor, D32CPA1PH9, 1.5 HP, 3600 RPM, Single Phase, 115/230 V, 60 Hz, 56H (D32CPA1PH9)

US Motors (Nidec), AC Motor, D32CPA1PH9, 1.5 HP, 3600 RPM, Single Phase, 115/230 V, 60 Hz, 56H (D32CPA1PH9)

Brand:
US Motors (Nidec)
Model:
D32CPA1PH9
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
D32CPA1PH9
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
General Purpose
Horsepower Rating:
1.5 HP
Synchronous RPM:
3600 RPM
Rated RPM:
3450 RPM
Frame Size:
56H
Rated Supply Voltage:
115/230 V
Motor Enclosure Type:
Open Drip Proof (ODP)
Full Load Torque:
36.49
Rated Voltage:
230 V
Rated Voltage:
115 V
Phase:
Single Phase
Service Factor:
1.15
Insulation Class:
B
Duty Cycle:
Continuous
Efficiency:
81.5%
C Dimension:
13.3
Bearing Type:
6203
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
13.3/6.7 A

Product Information

US Motors (Nidec) Series

1 1/2 HP, 3450 RPM, D32CPA1PH9, 115/230 V, 60 HZ, 56H
