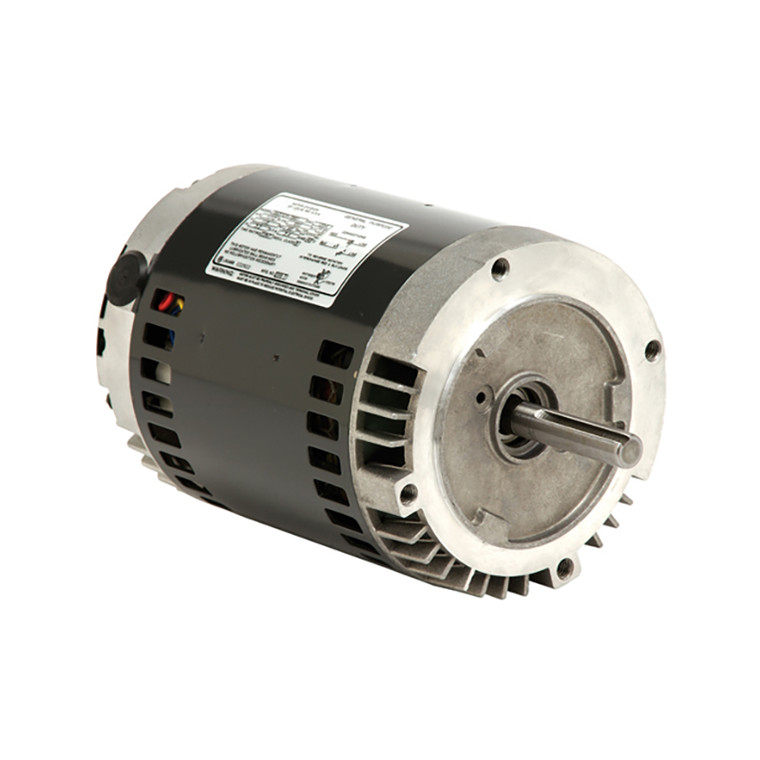

US Motors (Nidec), AC Motor, D2CPA1PCR, 2 HP, 3600 RPM, Single Phase, 115/230 V, 60 Hz, 56C (D2CPA1PCR)

Brand:
US Motors (Nidec)
Model:
D2CPA1PCR
Condition:
New
0 Customer Reviews
Out Of Stock
Adding to cart… The item has been added

Technical Specifications

Model:
D2CPA1PCR
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
General Purpose
Horsepower Rating:
2 HP
Synchronous RPM:
3600 RPM
Rated RPM:
3450 RPM
Frame Size:
56C
Rated Supply Voltage:
115/230 V
Motor Enclosure Type:
Open Drip Proof (ODP)
Motor Design Class:
L
Full Load Torque:
48.71
Rated Voltage:
230 V
Rated Voltage:
115 V
Phase:
Single Phase
Service Factor:
1.15
Insulation Class:
B
Duty Cycle:
Continuous
Efficiency:
82.9%
C Dimension:
13.3
Bearing Type:
BALL
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
17.3/8.7 A

Product Information

US Motors (Nidec) Series

2 HP,3450 RPM,D2CPA1PCR,115/230 V,60,56C
