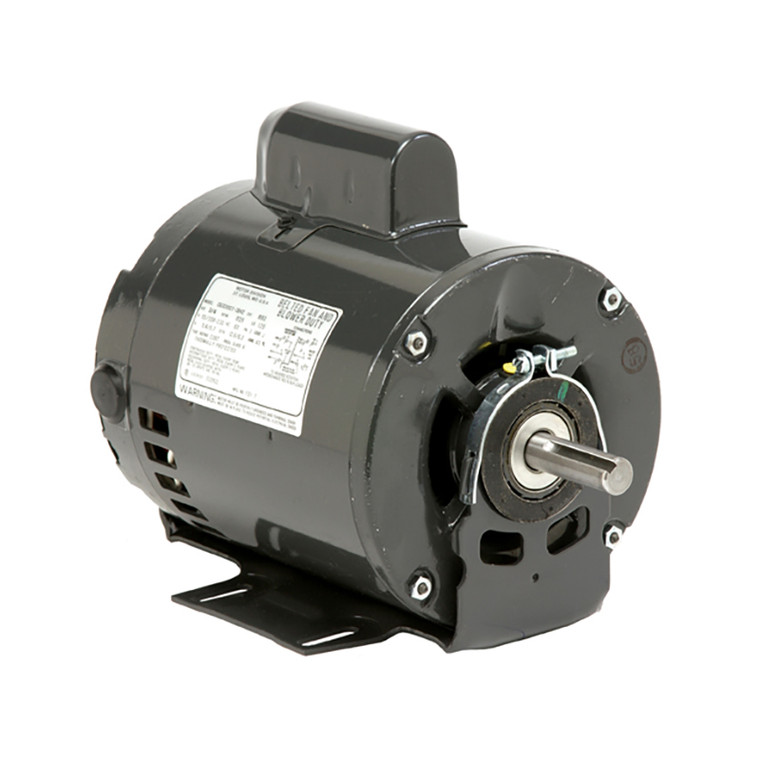

US Motors (Nidec), AC Motor, D1CPA3PH9, 1 HP, 1200 RPM, Single Phase, 115/230 V, 60 Hz, 56H (D1CPA3PH9)

Brand:
US Motors (Nidec)
Model:
D1CPA3PH9
Condition:
New
0 Customer Reviews
Out Of Stock
Adding to cart… The item has been added

Technical Specifications

Model:
D1CPA3PH9
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
General Purpose
Horsepower Rating:
1 HP
Synchronous RPM:
1200 RPM
Rated RPM:
1140 RPM
Frame Size:
56H
Rated Supply Voltage:
115/230 V
Motor Enclosure Type:
Open Drip Proof (ODP)
Rated Voltage:
230 V
Rated Voltage:
115 V
Phase:
Single Phase
Service Factor:
1.15
Insulation Class:
B
Duty Cycle:
Continuous
Efficiency:
81.1%
C Dimension:
13.1
Bearing Type:
BALL
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
8.9/4.6 A

Product Information

US Motors (Nidec) Series

1 HP, 1140 RPM, D1CPA3PH9, 115/230 V, 60 HZ, 56H
