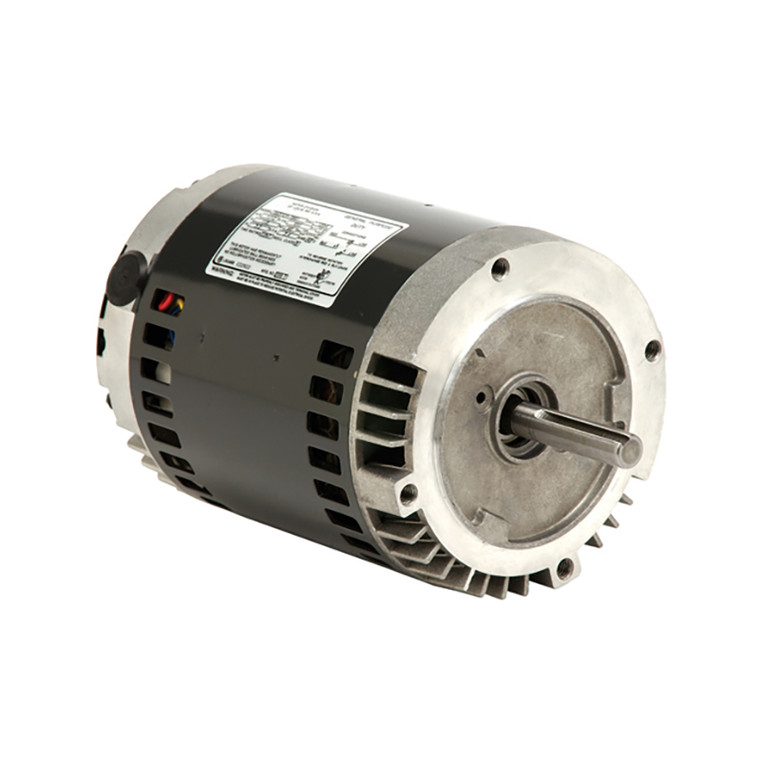

US Motors (Nidec), AC Motor, D1CPA2PCR, 1 HP, 1800 RPM, Single Phase, 115/230 V, 60 Hz, 56C (D1CPA2PCR)

US Motors (Nidec), AC Motor, D1CPA2PCR, 1 HP, 1800 RPM, Single Phase, 115/230 V, 60 Hz, 56C (D1CPA2PCR)

Brand:
US Motors (Nidec)
Model:
D1CPA2PCR
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
D1CPA2PCR
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
General Purpose
Horsepower Rating:
1 HP
Synchronous RPM:
1800 RPM
Rated RPM:
1725 RPM
Frame Size:
56C
Rated Supply Voltage:
115/230 V
Motor Enclosure Type:
Open Drip Proof (ODP)
Full Load Torque:
48.69
Rated Voltage:
230 V
Rated Voltage:
115 V
Phase:
Single Phase
Service Factor:
1.15
Insulation Class:
B
Duty Cycle:
Continuous
Efficiency:
82.6%
C Dimension:
12.3
Bearing Type:
6203
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
8.8/4.4 A

Product Information

US Motors (Nidec) Series

1 HP,1725 RPM,D1CPA2PCR,115/230 V,60,56C
