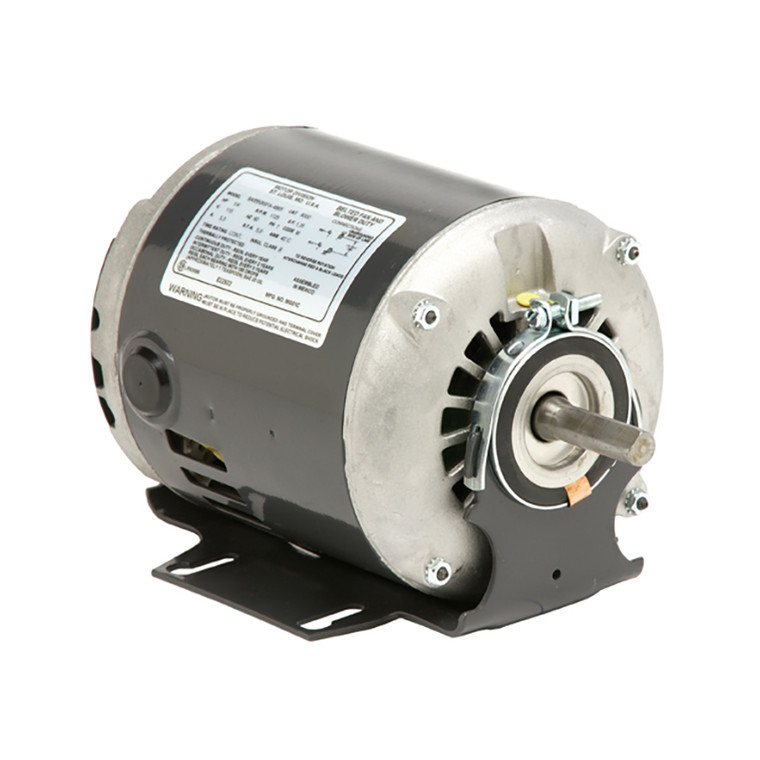

US Motors (Nidec), AC Motor, D14B2NZA9, 0.25 HP, 1800 RPM, Single Phase, 115 V, 60 Hz, 56Z (D14B2NZA9)

US Motors (Nidec), AC Motor, D14B2NZA9, 0.25 HP, 1800 RPM, Single Phase, 115 V, 60 Hz, 56Z (D14B2NZA9)

Brand:
US Motors (Nidec)
Model:
D14B2NZA9
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
D14B2NZA9
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
General Purpose
Horsepower Rating:
0.25 HP
Synchronous RPM:
1800 RPM
Rated RPM:
1725 RPM
Frame Size:
56Z
Rated Supply Voltage:
115 V
Motor Enclosure Type:
Open Drip Proof (ODP)
Motor Design Class:
O
Full Load Torque:
12.22
Rated Voltage:
115 V
Phase:
Single Phase
Service Factor:
1
Insulation Class:
B
Duty Cycle:
Continuous
Efficiency:
54.8%
C Dimension:
9.38
Bearing Type:
6203
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
5.4 A

Product Information

US Motors (Nidec) Series

1/4 HP, 1725 RPM, D14B2NZA9, 115 V, 60 HZ, 56Z
