US Motors (Nidec) logo

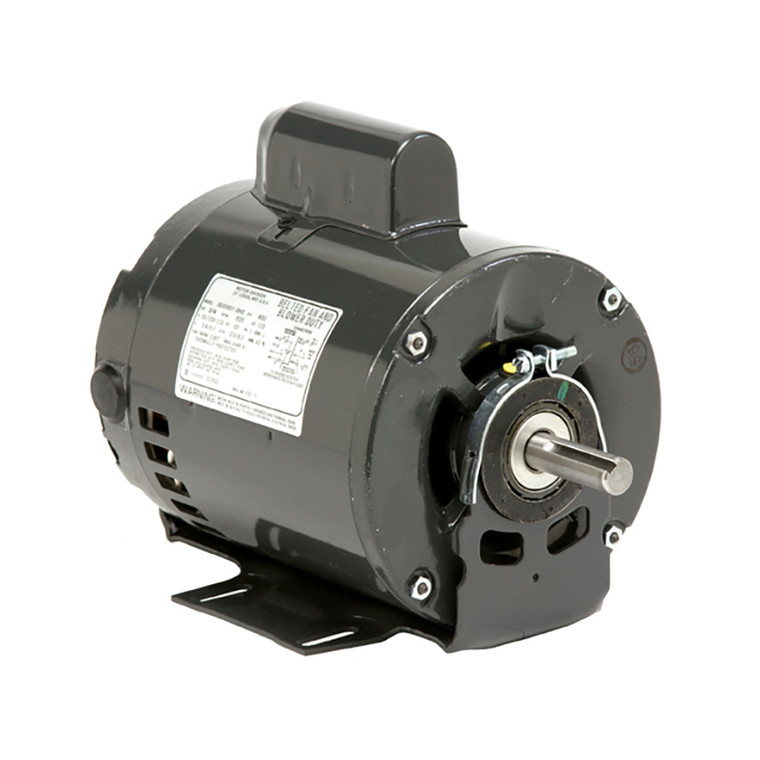

US Motors (Nidec), AC Motor, D13CA1J9, 0.33 HP, 3600 RPM, Single Phase, 115/208-230 V, 60 Hz, 56 (D13CA1J9)

Brand:
US Motors (Nidec)
Model:
D13CA1J9
Condition:
New
0 Customer Reviews
Out Of Stock
Adding to cart… The item has been added

Technical Specifications

Model:
D13CA1J9
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
General Purpose
Horsepower Rating:
0.33 HP
Synchronous RPM:
3600 RPM
Rated RPM:
3450 RPM
Frame Size:
56
Rated Supply Voltage:
115/208-230 V
Motor Enclosure Type:
Open Drip Proof (ODP)
Rated Voltage:
230 V
Rated Voltage:
115 V
Phase:
Single Phase
Service Factor:
1.35
Insulation Class:
B
Duty Cycle:
Continuous
C Dimension:
10.3
Bearing Type:
6203
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
6/2.9-3.0 A

Product Information

US Motors (Nidec) Series

1/3 HP, 3450 RPM, D13CA1J9, 115/208-230 V, 60 HZ, 56
