US Motors (Nidec) logo

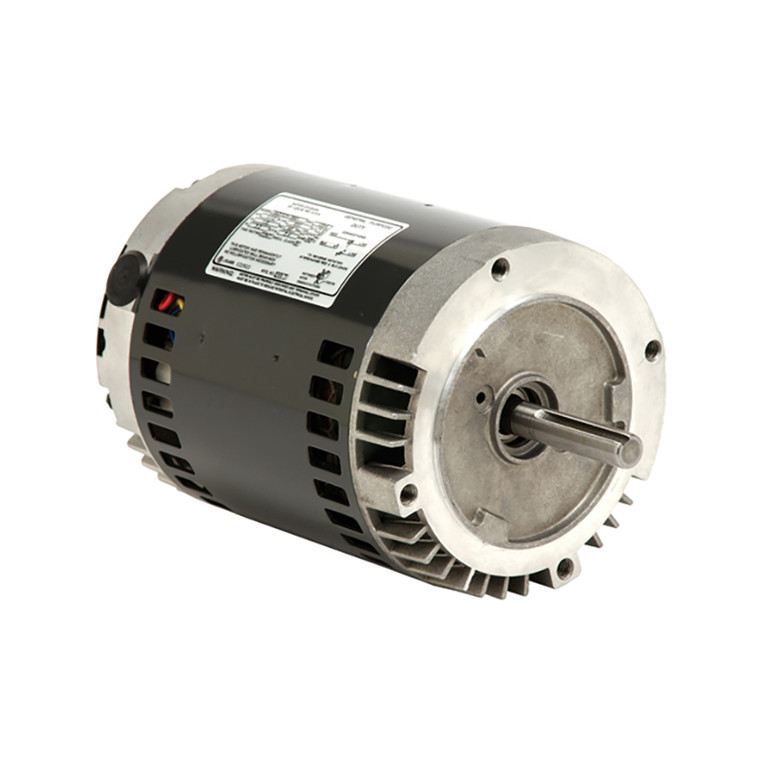

US Motors (Nidec), AC Motor, D12CP3PCR, 0.5 HP, 1200 RPM, Single Phase, 115/230 V, 60 Hz, 56C (D12CP3PCR)

Brand:
US Motors (Nidec)
Model:
D12CP3PCR
Condition:
New
0 Customer Reviews
Out Of Stock
Adding to cart… The item has been added

Technical Specifications

Model:
D12CP3PCR
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
General Purpose
Horsepower Rating:
0.5 HP
Synchronous RPM:
1200 RPM
Rated RPM:
1140 RPM
Frame Size:
56C
Rated Supply Voltage:
115/230 V
Motor Enclosure Type:
Open Drip Proof (ODP)
Full Load Torque:
36.73
Rated Voltage:
230 V
Rated Voltage:
115 V
Phase:
Single Phase
Service Factor:
1.25
Insulation Class:
B
Duty Cycle:
Continuous
Efficiency:
76.2%
C Dimension:
12.3
Bearing Type:
6203
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
4.8/2.4 A

Product Information

US Motors (Nidec) Series

1/2 HP,1140 RPM,D12CP3PCR,115/230 V,60,56C
