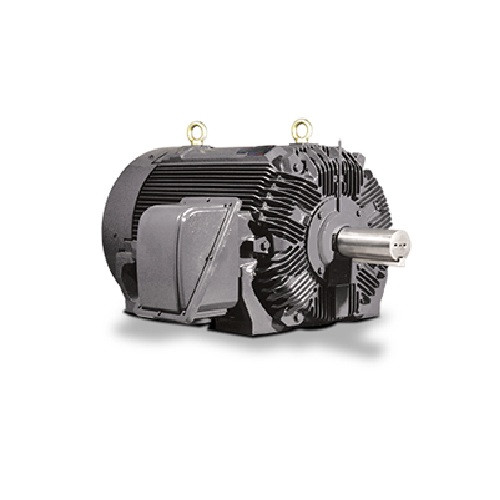

TECO CDP2006RZ 200 HP, 1200 RPM, 460 V, TEFC, 505UZ Frame, Three Phase, 60/50 Hz (CDP2006RZ)

Brand:
TECO
Model:
CDP2006RZ
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added

TECO CDP2006RZ:

  • 200 HP
  • 245 Motor FLA
  • 460 V
  • 1200 RPM
  • 505UZ Frame
  • Totally Enclosed Fan Cooled (TEFC)
  • Three Phase
  • 95.8% Efficiency
  • 79.9% Power Factor
Write a Review

Technical Specifications

Product Information

TECO Series

MAX-HT HI TORQUE CRUSHER DUTY DESIGN A

APPLICATIONS:

  • Crushers
  • Impactors
  • Chippers/Shredders
  • Ball Mills/Rolling Mills
  • Any High Torque Application

Features

FEATURES:

  • Output Range: 20 - 600 HP
  • Speed: 1800, 1200 & 900 RPM
  • Enclosure: Totally Enclosed Fan Cooled (IP55)
  • Voltage: 230/460V (Usable on 208V); 150HP and Larger is 460V Only/li>
  • Three Phase, 60 Hz, 1.15 Service Factor (Continuous); 50 Hz, 1.0 Service Factor (Continuous)
  • CSA Certified for Class I, Div. 2, Groups B, C, D - Temp Code T3 Minimum
  • CSA Certified for Class II, Div. 2, Groups F & G - Temp Code T3 Minimum (Frame 444T and above)
  • Class F Insulation
  • Class B Temperature Rise
  • NEMA Design C Torques; Equal or Greater Than 200% Starting Torque / 250% Breakdown Torque
  • Cast Iron Frame, End Brackets, Main Conduit Box; Rolled Steel Fan Cover
  • Grounding Terminal Inside Main Conduit Box
  • Oversized Main Conduit Box Rotatable in 90 Degree Increments - F1 Mounted
  • Designed for 40 C Ambient Temperature
  • Designed for 3300 ft. Elevation
  • Bi-Directional Rotation
  • High Strength 4140 AISI Steel Shaft
  • Suitable for Inverter Use per NEMA MG-1.4.4.2, Part 31
  • Inverter Duty Speed Range: 20:1 Variable Torque, 10:1 Constant Torque (350 HP and Larger are 3:1 Constant Torque)
