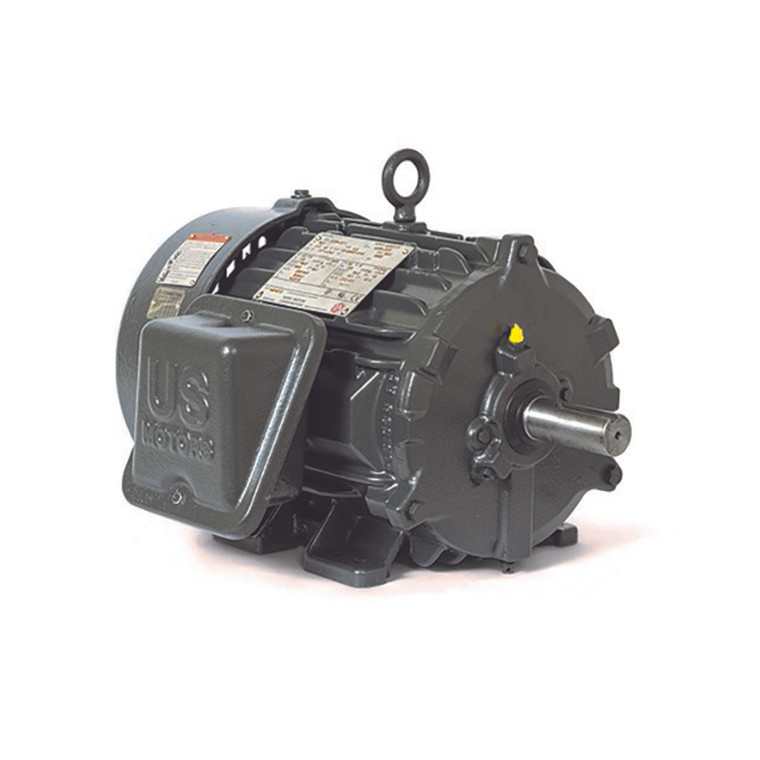

US Motors (Nidec), AC Motor, CD7P2E, 7.5 HP, 1800 RPM, Three Phase, 230/460 & 200/400 V, 60 , 50 Hz, 213T (CD7P2E)

Brand:
US Motors (Nidec)
Model:
CD7P2E
Condition:
New
0 Customer Reviews
Out Of Stock
Adding to cart… The item has been added

Technical Specifications

Model:
CD7P2E
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
Severe Duty
Horsepower Rating:
7.5 HP
Synchronous RPM:
1800 RPM
Frame Size:
213T
Rated Supply Voltage:
230/460 & 200/400 V
Motor Enclosure Type:
Totally Enclosed Fan Cooled (TEFC)
Motor Design Class:
B
Full Load Torque:
22.2
Rated Voltage:
208 V
Rated Voltage:
230 V
Rated Voltage:
460 V
Phase:
Three Phase
Service Factor:
1.15
Insulation Class:
F
Duty Cycle:
Continuous
Efficiency:
91.7%
Construction:
Cast Iron
C Dimension:
19.6
Bearing Type:
6206-J/C3
Rated Input Frequency:
60 Hz
Rated Input Frequency:
50 Hz
Motor Full Load Amps:
19.1/9.6 A

Product Information

US Motors (Nidec) Series

7 1/2 HP, 1770 & 1465 RPM, CD7P2E, 230/460 & 200/400 V, 60 & 50 HZ, 213T

Corro-Duty World Motor

APPLICATIONS:

For pulp & paper, mill & chemical and any other severe duty environments found in the process industries.

FEATURES:

  • Class F Insulation, Class B Rise At Full Load On 60 Hertz Sine Wave Power
  • All Cast Iron Construction
  • Corrosion Resistant Mill & Chemical Duty Paint
  • Stainless Steel Nameplate (with CE Mark) & Zinc Plated Hardware
  • Dual Bearing Seals On Pulley End For IP55 Protection
  • Dual Voltage 230/460 Volts (1-100 HP)
  • Precision Balance (< 0.08 In/Sec Vibration)
  • 40°C Ambient, NEMA®† Design B Performance On 60 Hz Sine Wave Power
  • 1 .15 Service Factor @ 60 Hz
  • Self-Certified Class I, Division 2, Groups A, B, C, & D
  • Suitable for 20:1 (3-60hz) Variable Torque; 5:1 (12-60hz) Constant Torque On Inverter Power
  • Regreasable Open Bearings
  • Lifting Provisions, Epoxy Coated Rotor
  • Field Convertible To F2 Mounting
  • Brass Breather Condensation Drains
  • Oversized Conduit Box - 1 Size Larger Than NEMA Standard
  • Cast Iron Inner Bearing Caps
  • Conversion Kits: C&D Flanges, Canopy Kits
