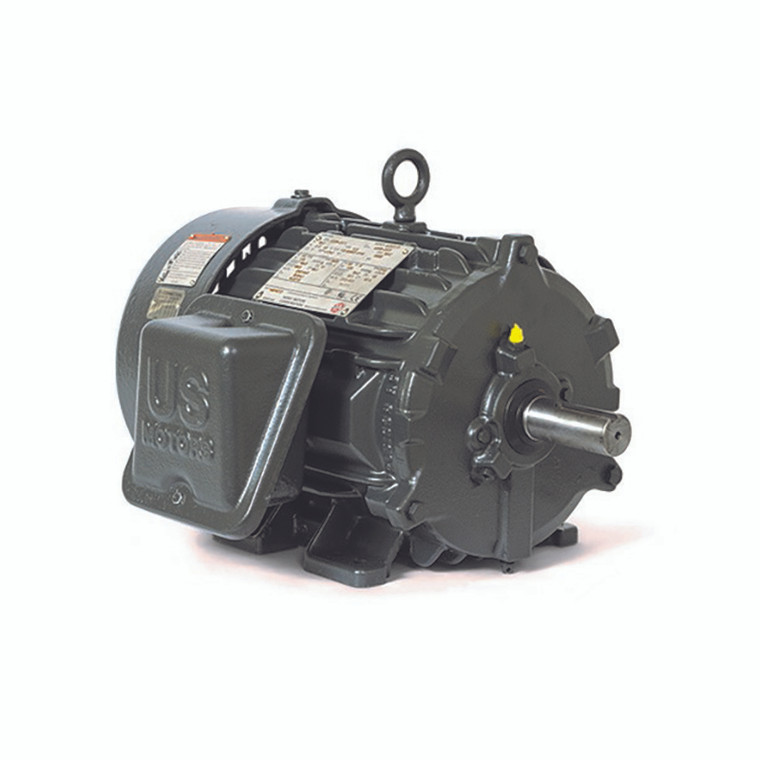

US Motors (Nidec), AC Motor, CD75P2F, 75 HP, 1800 RPM, Three Phase, 460 & 400 V, 60 , 50 Hz, 365T (CD75P2F)

US Motors (Nidec), AC Motor, CD75P2F, 75 HP, 1800 RPM, Three Phase, 460 & 400 V, 60 , 50 Hz, 365T (CD75P2F)

Brand:
US Motors (Nidec)
Model:
CD75P2F
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Product Information

US Motors (Nidec) Series

75 HP, 1785 & 1480 RPM, CD75P2F, 460 & 400 V, 60 & 50 HZ, 365T
Download Brochure
Download Manual

Corro-Duty World Motor

APPLICATIONS:

For pulp & paper, mill & chemical and any other severe duty environments found in the process industries.

FEATURES:

  • Class F Insulation, Class B Rise At Full Load On 60 Hertz Sine Wave Power
  • All Cast Iron Construction
  • Corrosion Resistant Mill & Chemical Duty Paint
  • Stainless Steel Nameplate (with CE Mark) & Zinc Plated Hardware
  • Dual Bearing Seals On Pulley End For IP55 Protection
  • Dual Voltage 230/460 Volts (1-100 HP)
  • Precision Balance (< 0.08 In/Sec Vibration)
  • 40°C Ambient, NEMA®† Design B Performance On 60 Hz Sine Wave Power
  • 1 .15 Service Factor @ 60 Hz
  • Self-Certified Class I, Division 2, Groups A, B, C, & D
  • Suitable for 20:1 (3-60hz) Variable Torque; 5:1 (12-60hz) Constant Torque On Inverter Power
  • Regreasable Open Bearings
  • Lifting Provisions, Epoxy Coated Rotor
  • Field Convertible To F2 Mounting
  • Brass Breather Condensation Drains
  • Oversized Conduit Box - 1 Size Larger Than NEMA Standard
  • Cast Iron Inner Bearing Caps
  • Conversion Kits: C&D Flanges, Canopy Kits
