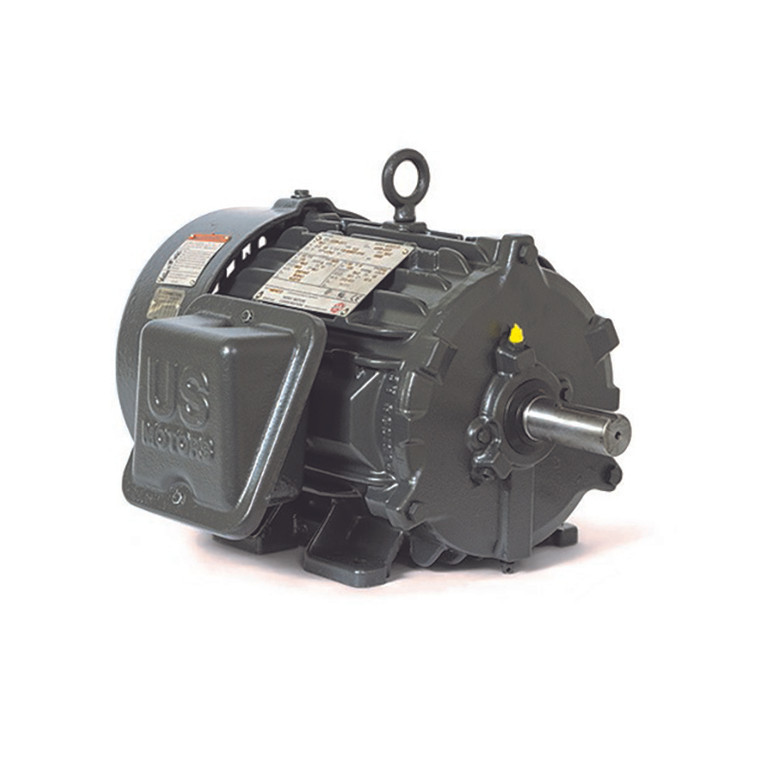

US Motors (Nidec), AC Motor, CD25P3G, 25 HP, 1200 RPM, Three Phase, 575 V, 60 Hz, 324T (CD25P3G)

US Motors (Nidec), AC Motor, CD25P3G, 25 HP, 1200 RPM, Three Phase, 575 V, 60 Hz, 324T (CD25P3G)

Brand:
US Motors (Nidec)
Model:
CD25P3G
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Product Information

US Motors (Nidec) Series

25 HP, 1180 RPM, CD25P3G, 575 V, 60 HZ, 324T
Download Brochure
Download Manual

Corro-Duty World Motor

APPLICATIONS:

For pulp & paper, mill & chemical and any other severe duty environments found in the process industries.

FEATURES:

  • Class F Insulation, Class B Rise At Full Load On 60 Hertz Sine Wave Power
  • All Cast Iron Construction
  • Corrosion Resistant Mill & Chemical Duty Paint
  • Stainless Steel Nameplate (with CE Mark) & Zinc Plated Hardware
  • Dual Bearing Seals On Pulley End For IP55 Protection
  • Dual Voltage 230/460 Volts (1-100 HP)
  • Precision Balance (< 0.08 In/Sec Vibration)
  • 40°C Ambient, NEMA®† Design B Performance On 60 Hz Sine Wave Power
  • 1 .15 Service Factor @ 60 Hz
  • Self-Certified Class I, Division 2, Groups A, B, C, & D
  • Suitable for 20:1 (3-60hz) Variable Torque; 5:1 (12-60hz) Constant Torque On Inverter Power
  • Regreasable Open Bearings
  • Lifting Provisions, Epoxy Coated Rotor
  • Field Convertible To F2 Mounting
  • Brass Breather Condensation Drains
  • Oversized Conduit Box - 1 Size Larger Than NEMA Standard
  • Cast Iron Inner Bearing Caps
  • Conversion Kits: C&D Flanges, Canopy Kits
