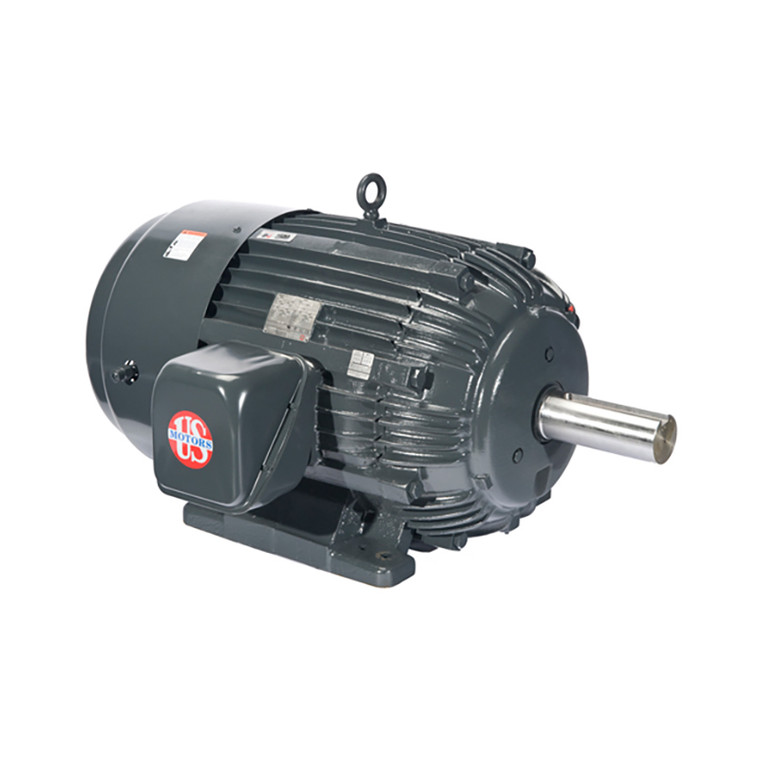

US Motors (Nidec), AC Motor, C100P3G, 100 HP, 1200 RPM, Three Phase, 575 V, 60 Hz, 444T (C100P3G)

US Motors (Nidec), AC Motor, C100P3G, 100 HP, 1200 RPM, Three Phase, 575 V, 60 Hz, 444T (C100P3G)

Brand:
US Motors (Nidec)
Model:
C100P3G
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
C100P3G
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
Severe Duty
Horsepower Rating:
100 HP
Synchronous RPM:
1200 RPM
Rated RPM:
1185 RPM
Frame Size:
444T
Rated Supply Voltage:
575 V
Motor Enclosure Type:
Totally Enclosed Fan Cooled (TEFC)
Motor Design Class:
B
Full Load Torque:
442.5
Rated Voltage:
575 V
Phase:
Three Phase
Service Factor:
1.15
Insulation Class:
F
Duty Cycle:
Continuous
Efficiency:
95%
Construction:
Cast Iron
C Dimension:
45.7
Bearing Type:
6313-J/C3
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
99 A

Product Information

US Motors (Nidec) Series

100 HP, 1185 RPM, C100P3G, 575 V, 60 HZ, 444T
Download Brochure
Download Manual

Corro-Duty

APPLICATIONS:

For pulp & paper, mill & chemical and any other severe duty environments found in the process industries

FEATURES:

  • Class F Insulation, Class B Rise At Full Load On 60 Hertz Sine Wave Power
  • All Cast Iron Construction (Steel Frame & Fan Cover On 140 Frame)
  • Corrosion Resistant Mill & Chemical Duty Paint
  • Stainless Steel Nameplate (with "CE" Mark) & Zinc Plated Hardware
  • Shaft Slinger On Pulley End For IP54 Protection
  • Precision Balance (< 0.08 In/Sec Vibration)
  • 40°C Ambient, NEMA®† Design B Performance On 60 Hertz Sine Wave Power
  • Regreasable Bearings 180 Frame & Up, Lifting Provisions 180 Frame & Up
  • Double Shielded Bearings 140-360, Open On 400-440
  • Oversized Conduit Box - 1 Size Larger Than NEMA®† Standard
  • Cast Iron Inner Bearing Caps (180 Frame & Larger)
  • Field Convertible To F2 Mounting 180 Frame & Larger
  • Condensation Drains With Threaded Brass Breather Plugs
