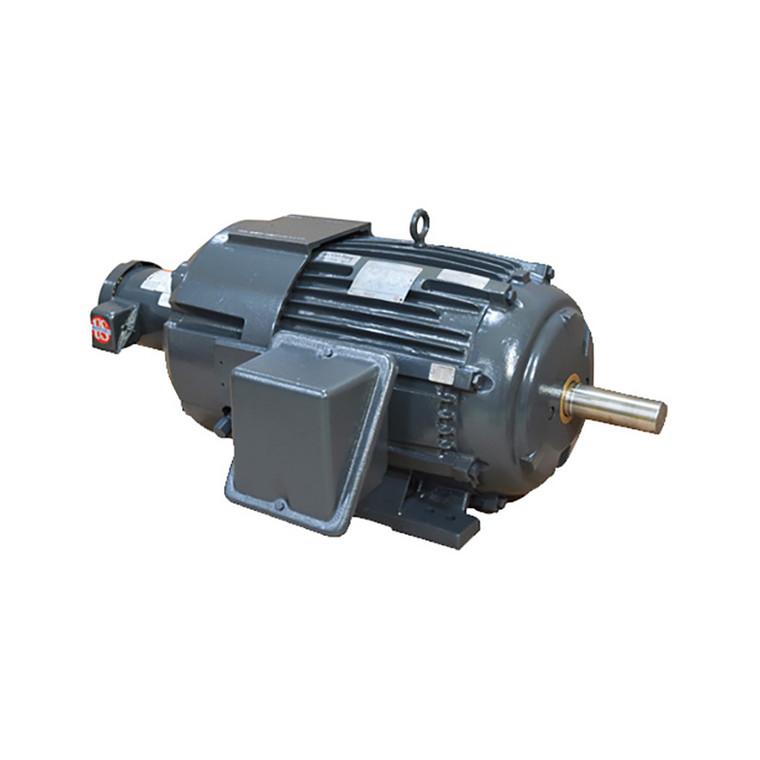

US Motors (Nidec), AC Motor, B60T3B, 60 HP, 1200 RPM, Three Phase, 230/460 V, 60 Hz, 404T (B60T3B)

US Motors (Nidec), AC Motor, B60T3B, 60 HP, 1200 RPM, Three Phase, 230/460 V, 60 Hz, 404T (B60T3B)

Brand:
US Motors (Nidec)
Model:
B60T3B
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
B60T3B
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
General Purpose
Horsepower Rating:
60 HP
Synchronous RPM:
1200 RPM
Rated RPM:
1190 RPM
Frame Size:
404T
Rated Supply Voltage:
230/460 V
Motor Enclosure Type:
Totally Enclosed Blower Cooled (TEBC)
Motor Design Class:
A
Full Load Torque:
264.3
Rated Voltage:
230 V
Rated Voltage:
460 V
Phase:
Three Phase
Service Factor:
1
Insulation Class:
H
Duty Cycle:
Continuous
Efficiency:
94.5%
C Dimension:
51.2
Bearing Type:
6316-J/C3
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
149/74 A

Product Information

US Motors (Nidec) Series

60 HP, 1190 RPM, B60T3B, 230/460 V, 60 HZ, 404T
