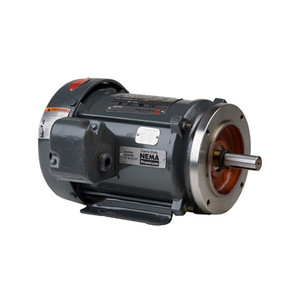

US Motors (Nidec), AC Motor, B3T2BC, 3 HP, 1800 RPM, Three Phase, 230/460 V, 60 Hz, 182TC (B3T2BC)

US Motors (Nidec), AC Motor, B3T2BC, 3 HP, 1800 RPM, Three Phase, 230/460 V, 60 Hz, 182TC (B3T2BC)

Brand:
US Motors (Nidec)
Model:
B3T2BC
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
B3T2BC
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
General Purpose
Horsepower Rating:
3 HP
Synchronous RPM:
1800 RPM
Rated RPM:
1765 RPM
Frame Size:
182TC
Rated Supply Voltage:
230/460 V
Motor Enclosure Type:
Totally Enclosed Blower Cooled (TEBC)
Motor Design Class:
B
Full Load Torque:
8.9
Rated Voltage:
230 V
Rated Voltage:
460 V
Phase:
Three Phase
Service Factor:
1.15
Insulation Class:
F
Duty Cycle:
Continuous
Efficiency:
89.5%
C Dimension:
15.1
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
7.7/3.9 A

Product Information

US Motors (Nidec) Series

3 HP,1765 RPM,B3T2BC,230/460 V,60,182TC
