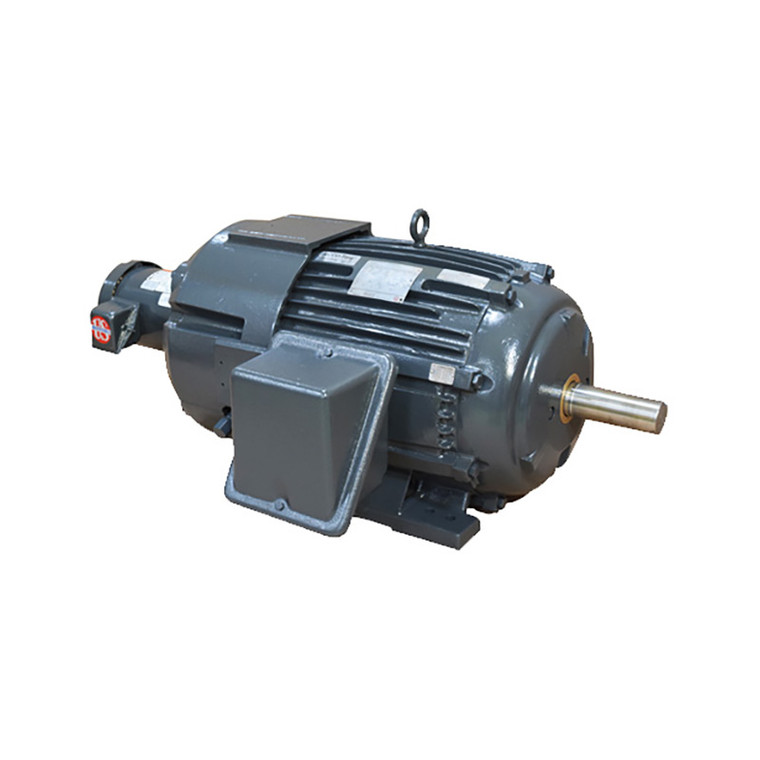

US Motors (Nidec), AC Motor, B10T2BC, 10 HP, 1800 RPM, Three Phase, 230/460 V, 60 Hz, 215TC (B10T2BC)

US Motors (Nidec), AC Motor, B10T2BC, 10 HP, 1800 RPM, Three Phase, 230/460 V, 60 Hz, 215TC (B10T2BC)

Brand:
US Motors (Nidec)
Model:
B10T2BC
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
B10T2BC
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
General Purpose
Horsepower Rating:
10 HP
Synchronous RPM:
1800 RPM
Rated RPM:
1775 RPM
Frame Size:
215TC
Rated Supply Voltage:
230/460 V
Motor Enclosure Type:
Totally Enclosed Blower Cooled (TEBC)
Motor Design Class:
A
Full Load Torque:
29.6
Rated Voltage:
230 V
Rated Voltage:
460 V
Phase:
Three Phase
Service Factor:
1
Insulation Class:
H
Duty Cycle:
Continuous
Efficiency:
91.7%
Bearing Type:
6206-J/C3
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
27.7/13.9 A

Product Information

US Motors (Nidec) Series

10 HP, 1775 RPM, B10T2BC, 230/460 V, 60 HZ, 215TC
Download Brochure
