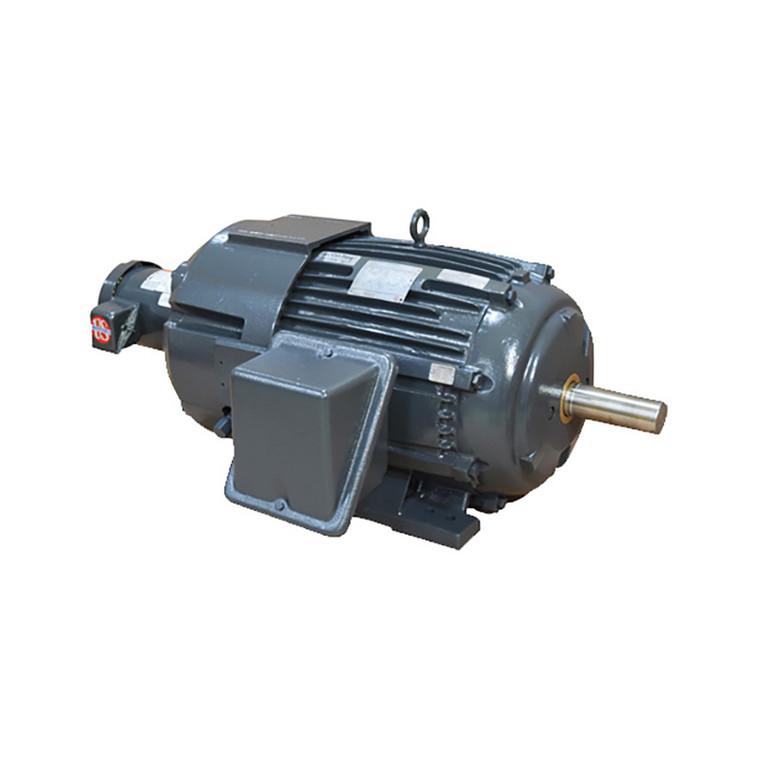

US Motors (Nidec), AC Motor, B100T2B, 100 HP, 1800 RPM, Three Phase, 230/460 V, 60 Hz, 405T (B100T2B)

Brand:
US Motors (Nidec)
Model:
B100T2B
Condition:
New
0 Customer Reviews
Out Of Stock
Adding to cart… The item has been added

Technical Specifications

Model:
B100T2B
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
General Purpose
Horsepower Rating:
100 HP
Synchronous RPM:
1800 RPM
Rated RPM:
1780 RPM
Frame Size:
405T
Rated Supply Voltage:
230/460 V
Motor Enclosure Type:
Totally Enclosed Blower Cooled (TEBC)
Motor Design Class:
B
Full Load Torque:
294.7
Rated Voltage:
230 V
Rated Voltage:
460 V
Phase:
Three Phase
Service Factor:
1
Insulation Class:
H
Duty Cycle:
Continuous
Efficiency:
95.4%
C Dimension:
51.2
Bearing Type:
6316-J/C3
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
225/113 A

Product Information

US Motors (Nidec) Series

100 HP, 1780 RPM, B100T2B, 230/460 V, 60 HZ, 405T
