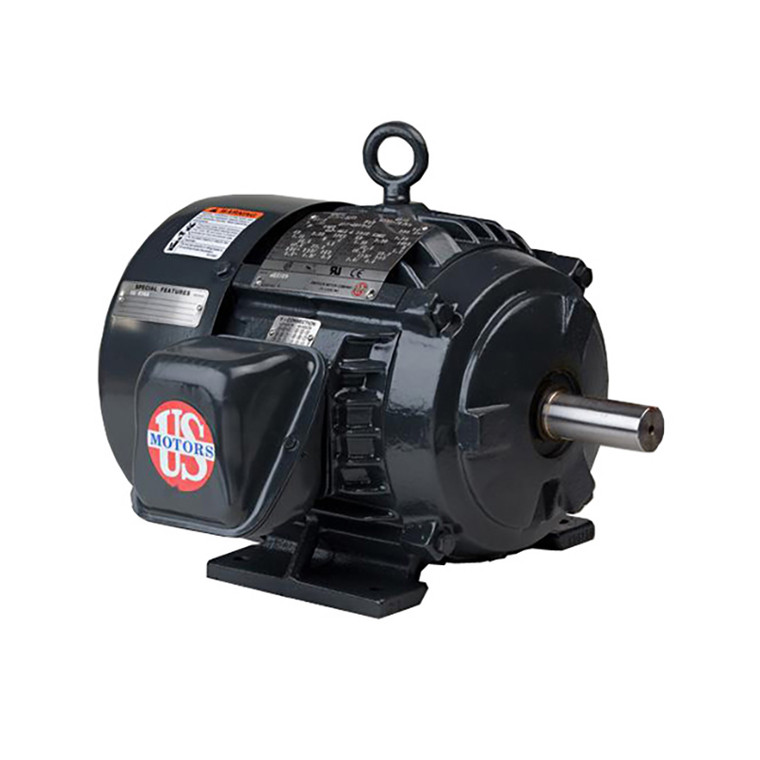

US Motors (Nidec), AC Motor, A32P3C, 1.5 HP, 1200 RPM, Three Phase, 460 V, 60 Hz, 184 (A32P3C)

Brand:
US Motors (Nidec)
Model:
A32P3C
Condition:
New
0 Customer Reviews
Out Of Stock
Adding to cart… The item has been added

Technical Specifications

Model:
A32P3C
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
General Purpose
Horsepower Rating:
1.5 HP
Synchronous RPM:
1200 RPM
Rated RPM:
1180 RPM
Frame Size:
184
Rated Supply Voltage:
460 V
Motor Enclosure Type:
Totally Enclosed Fan Cooled (TEFC)
Motor Design Class:
B
Full Load Torque:
6.7
Rated Voltage:
460 V
Phase:
Three Phase
Service Factor:
1.15
Insulation Class:
F
Duty Cycle:
Continuous
Efficiency:
88.5%
Construction:
Cast Iron
C Dimension:
15
Bearing Type:
30BC02JPP3
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
2.3 A

Product Information

US Motors (Nidec) Series

1 1/2 HP, 1180 RPM, A32P3C, 460 V, 60 HZ, 184
