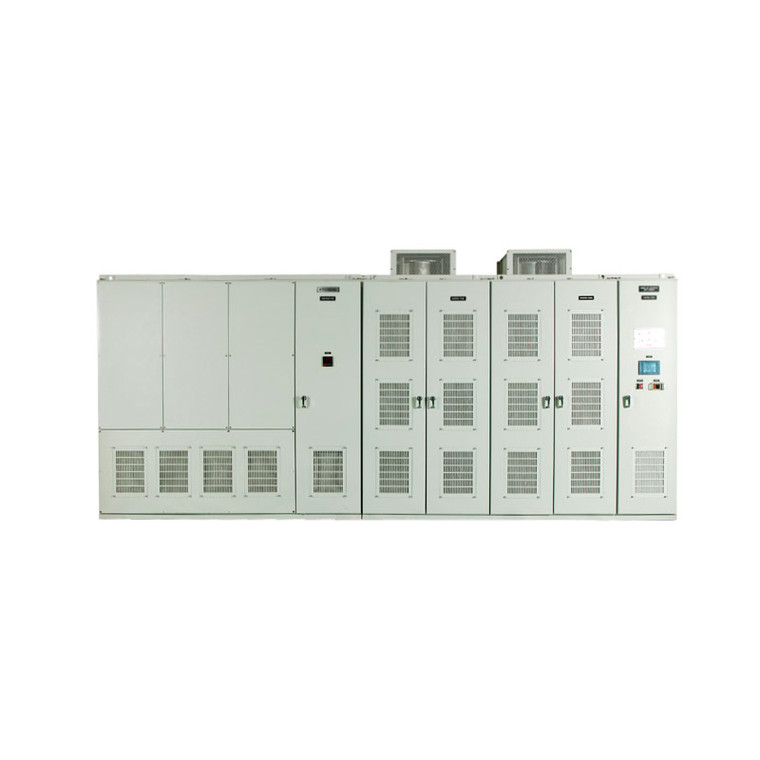

900HP 6600V Hyundai N5000 Medium Voltage VFD, Inverter, AC Drive N5000-0675H6 (N5000-0675H6)

Product Information

HYUNDAI N5000 Series

High Performance and Efficiency

• Power Factor: over 0.95
  • No requirements for power factor correction capacitor
  • System Efficiency: over 96%
    • System efficiency is improved by connecting the power and motor without input-output filter and output transformer

Clean Power Input

• A clean input wave is achieved via a secondary phase-shifted transformer
• Without a filter, N5000 meets the stringent harmonic requirements of IEEE-519 (1992)
• Protects the other equipment from harmonic disturbance

Supplies of Clean Power for Motors

• Output waveforms, without a filter, are close to sine waves due to multiple PWM control
  • No cable length & motor type restrictions
  • Existing motor can be used without modifications
  • Reduced noise and vibration of motors
  • 3.3kV - 13 level/6.6kV - 25 level output

Small footprint and economical maintenance

• Small footprint and reduced installation costs due to no requirements for ancillary equipment such as input & output filter and the integral structure incorporating the input transformer and inverter panel
• Thanks to the modular single-phase inverter of draw-out type, easy maintenance and time saving are achieved.

Outstanding operation features by the improved sensorless vector control

• Energy saving V/F control for the fluid load (Fan, Pump)
• Inherent speed sensorless vector control of N5000
  • High starting torque operation
  • Control of current, speed and vibration of motor at the low speed range of light duty
  • Quick torque responsiveness and improved speed precision
  • Strong control regardless of motor specifications

Functions for trip-free operation (Option)

Improved Cell Bypass

• In case of cell failure during operation, the faulty cell will be bypassed and the neutral point will be shifted (balance is restored through angle adjustment). 92% of the rated voltage can be output after the failure of one cell.

Redundant Inverter Controller

• If the master controller is out of service during operation, output is generated due to automatic switching to the slave controller

Redundant Fiber-Optic Cable for CAN Communication

• If there are problems with the optic cable during operation, an automatic switching to the standby reserve optical communication H/W is made

Redundant Control Power

• The redundant control power module is equipped with AC 440V and DC 120V and monitors the control power. In case of the failure of a control power module, an automatic switching to the reserve module is made

Certification (Korea Electro-Technology Research Institute)

Performance Test: Harmonics, Power Factor & Control

Environmental Tests of Cell Inverter and Control Parts: Constant Temperature, Vibration, EMI/EMC

Display

Inverter Operation Status Display

• Operation frequency, input-output voltage, output current
• Input-output of external signals
• Warning status

Inverter Fault Display

• Fault type
• Time of Fault
• Operating frequency at time of fault
• Voltage and current at time of fault

Optional User Friendly PC-based Console (Option)

• Remote operation and monitoring via laptop or desktop
• Easy parameter setting and monitoring
• Multiple communication interfaces (RS-232, RS-485, MODBUS)
• Custom-made MMI display and upgrade support
