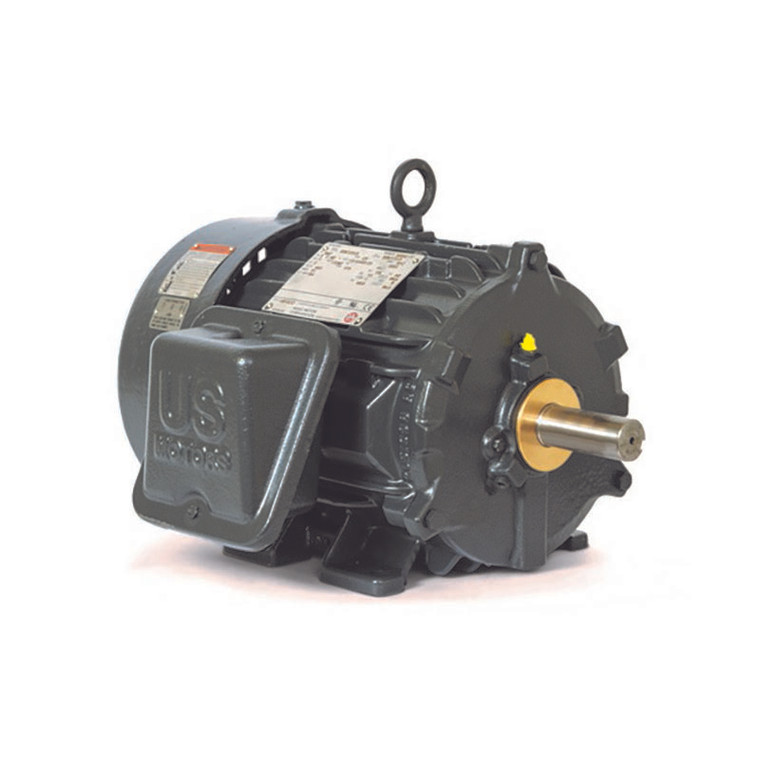

US Motors (Nidec), AC Motor, 8D75P2G, 75 HP, 1800 RPM, Three Phase, 575 V, 60 Hz, 365T (8D75P2G)

US Motors (Nidec), AC Motor, 8D75P2G, 75 HP, 1800 RPM, Three Phase, 575 V, 60 Hz, 365T (8D75P2G)

Brand:
US Motors (Nidec)
Model:
8D75P2G
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Product Information

US Motors (Nidec) Series

75 HP, 1785 RPM, 8D75P2G, 575 V, 60 HZ, 365T
Download Brochure
Download Manual

General Purpose Three Phase, Totally Enclosed Fan Cooled (TEFC) World Motor 841 Plus NEMA Premium Efficient

APPLICATIONS:

For constant speed and inverter duty applications in petro-chemical, pulp & paper, automotive, mining and waste treatment industries.

FEATURES:

  • Inverter Grade® Insulation System (Meets NEMA® MG-1 Part 31)
  • Class F Insulation, Class B Rise At Full Load (Sine Wave Power)
  • All Cast Iron Construction
  • Corrosion Resistant Mill & Chem Duty Paint (500 Hour Salt Spray Test)
  • Stainless Steel Nameplate (with CE Mark) & Zinc Plated Hardware
  • 40°C Ambient, NEMA® Design B Performance (Sine Wave Power)
  • VBXX® Bearing Isolators By Inpro/Seal On Both Ends For IP55 Bearing Protection
  • Same Size Regreasable Open Bearings, Brass Breathers/Drains
  • 5 Year Warranty (3 Years on Inverter Power)
  • External Grounding Provision, Epoxy Coated Rotor
  • 20:1 (3-60hz) Variable Torque; 5:1 (12-60hz) Constant Torque On Inverter Power
  • Precision Balance (< 0.05 In/Sec Vibration)
  • 1.15 SF On Sine Wave / 1.0 SF On Inverter Power
  • Meets or Exceeds IEEE 841 Standard 2009
  • Conversion Kits: C&D Flange, Drip Cover Kit, Shaft Grounding Ring (Nonhazardous Locations only)
  • Self-Certified Class I, Division 2, Groups A, B, C, & D
