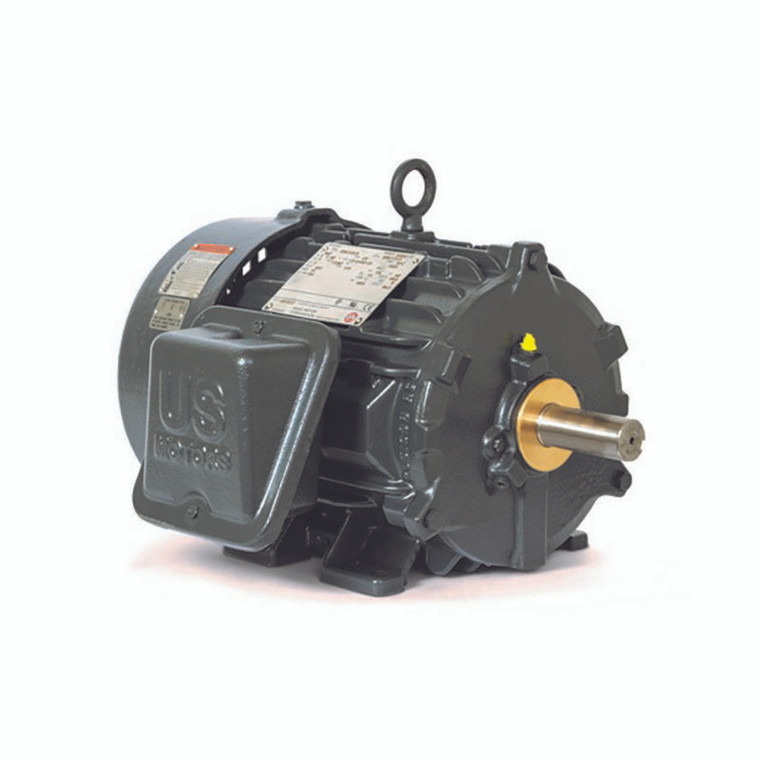

US Motors (Nidec), AC Motor, 8D40P3C, 40 HP, 1200 RPM, Three Phase, 460 V, 60 Hz, 364T (8D40P3C)

Brand:
US Motors (Nidec)
Model:
8D40P3C
Condition:
New
0 Customer Reviews
Out Of Stock
Adding to cart… The item has been added

Technical Specifications

Model:
8D40P3C
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
Severe Duty
Horsepower Rating:
40 HP
Synchronous RPM:
1200 RPM
Rated RPM:
1190 RPM
Frame Size:
364T
Rated Supply Voltage:
460 V
Motor Enclosure Type:
Totally Enclosed Fan Cooled (TEFC)
Motor Design Class:
B
Full Load Torque:
176.6
Rated Voltage:
460 V
Phase:
Three Phase
Service Factor:
1.15
Insulation Class:
F
Duty Cycle:
Continuous
Efficiency:
94.1%
Construction:
Cast Iron
Bearing Type:
65BC03J3
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
47 A

Product Information

US Motors (Nidec) Series

40 HP, 1190 RPM, 8D40P3C, 460 V, 60 HZ, 364T

General Purpose Three Phase, Totally Enclosed Fan Cooled (TEFC) World Motor 841 Plus NEMA Premium Efficient

APPLICATIONS:

For constant speed and inverter duty applications in petro-chemical, pulp & paper, automotive, mining and waste treatment industries.

FEATURES:

  • Inverter Grade® Insulation System (Meets NEMA® MG-1 Part 31)
  • Class F Insulation, Class B Rise At Full Load (Sine Wave Power)
  • All Cast Iron Construction
  • Corrosion Resistant Mill & Chem Duty Paint (500 Hour Salt Spray Test)
  • Stainless Steel Nameplate (with CE Mark) & Zinc Plated Hardware
  • 40°C Ambient, NEMA® Design B Performance (Sine Wave Power)
  • VBXX® Bearing Isolators By Inpro/Seal On Both Ends For IP55 Bearing Protection
  • Same Size Regreasable Open Bearings, Brass Breathers/Drains
  • 5 Year Warranty (3 Years on Inverter Power)
  • External Grounding Provision, Epoxy Coated Rotor
  • 20:1 (3-60hz) Variable Torque; 5:1 (12-60hz) Constant Torque On Inverter Power
  • Precision Balance (< 0.05 In/Sec Vibration)
  • 1.15 SF On Sine Wave / 1.0 SF On Inverter Power
  • Meets or Exceeds IEEE 841 Standard 2009
  • Conversion Kits: C&D Flange, Drip Cover Kit, Shaft Grounding Ring (Nonhazardous Locations only)
  • Self-Certified Class I, Division 2, Groups A, B, C, & D
