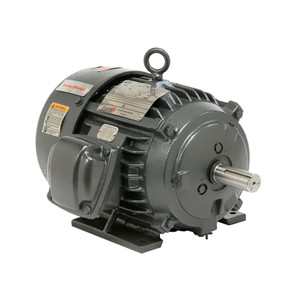

General Purpose Three Phase, Totally Enclosed Fan Cooled (TEFC) World Motor 841 Plus NEMA Premium Efficient

APPLICATIONS:

For constant speed and inverter duty applications in petro-chemical, pulp & paper, automotive, mining and waste treatment industries.

FEATURES:

• Inverter Grade® Insulation System (Meets NEMA® MG-1 Part 31)
• Class F Insulation, Class B Rise At Full Load (Sine Wave Power)
• All Cast Iron Construction
• Corrosion Resistant Mill & Chem Duty Paint (500 Hour Salt Spray Test)
• Stainless Steel Nameplate (with CE Mark) & Zinc Plated Hardware
• 40°C Ambient, NEMA® Design B Performance (Sine Wave Power)
• VBXX® Bearing Isolators By Inpro/Seal On Both Ends For IP55 Bearing Protection
• Same Size Regreasable Open Bearings, Brass Breathers/Drains
• 5 Year Warranty (3 Years on Inverter Power)
• External Grounding Provision, Epoxy Coated Rotor
• 20:1 (3-60hz) Variable Torque; 5:1 (12-60hz) Constant Torque On Inverter Power
• Precision Balance (< 0.05 In/Sec Vibration)
• 1.15 SF On Sine Wave / 1.0 SF On Inverter Power
• Meets or Exceeds IEEE 841 Standard 2009
• Conversion Kits: C&D Flange, Drip Cover Kit, Shaft Grounding Ring (Nonhazardous Locations only)
• Self-Certified Class I, Division 2, Groups A, B, C, & D
