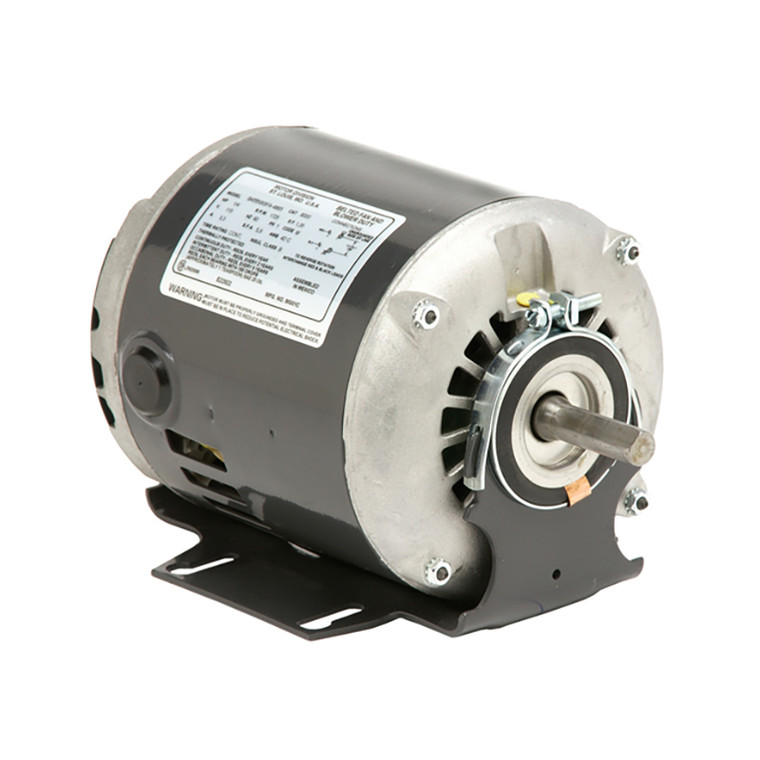

US Motors (Nidec), AC Motor, 840CV, 0.25 HP, 1800 RPM, Single Phase, 115 V, 60 Hz, 48 (840CV)

US Motors (Nidec), AC Motor, 840CV, 0.25 HP, 1800 RPM, Single Phase, 115 V, 60 Hz, 48 (840CV)

Brand:
US Motors (Nidec)
Model:
840CV
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
840CV
Brand:
US Motors (Nidec)
Product Condition:
New
Horsepower Rating:
0.25 HP
Synchronous RPM:
1800 RPM
Rated RPM:
1725 RPM
Frame Size:
48
Rated Supply Voltage:
115 V
Motor Enclosure Type:
Open Drip Proof (ODP)
Full Load Torque:
12
Rated Voltage:
115 V
Phase:
Single Phase
Service Factor:
1.35
Insulation Class:
B
Duty Cycle:
Continuous
C Dimension:
9.4
Bearing Type:
6203
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
5.3 A

Product Information

US Motors (Nidec) Series

1/4 HP, 1725 RPM, 840CV, 115 V, 60 HZ, 48
