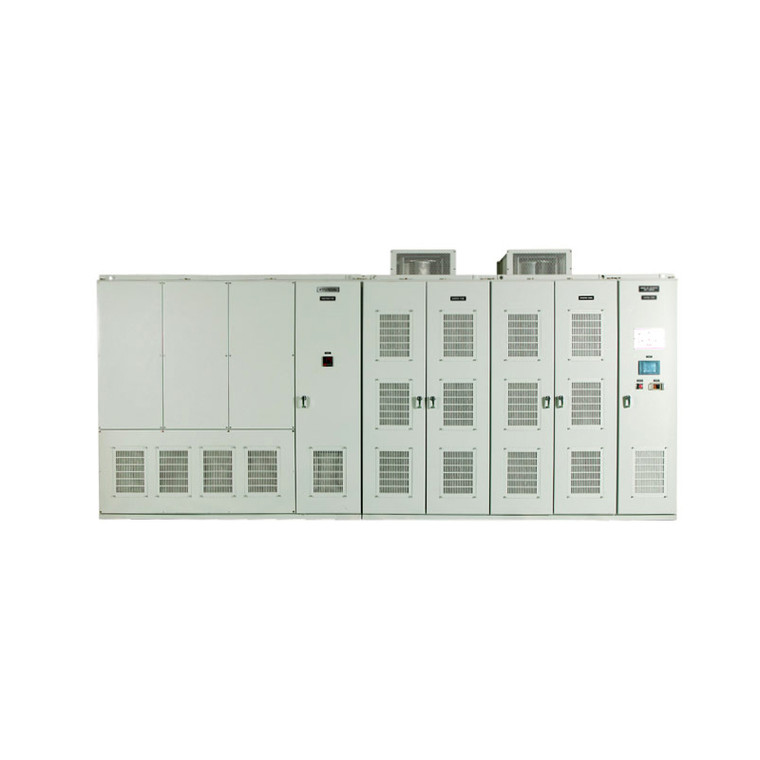

7800 HP 13800 V Hyundai N5000 Medium Voltage VFD, Inverter, AC Drive (N5000-5840U6)

Product Information

HYUNDAI N5000 Series

High Performance and Efficiency

\r\n
• Power Factor: over 0.95\r\n
  \r\n
  • No requirements for power factor correction capacitor
  \r\n
  • System Efficiency: over 96%\r\n
    \r\n
    • System efficiency is improved by connecting the power and motor without input-output filter and output transformer
    \r\n
    \r\n
  \r\n
  \r\n
\r\n

Clean Power Input

\r\n
• A clean input wave is achieved via a secondary phase-shifted transformer
\r\n
• Without a filter, N5000 meets the stringent harmonic requirements of IEEE-519 (1992)
\r\n
• Protects the other equipment from harmonic disturbance
\r\n

Supplies of Clean Power for Motors

\r\n
• Output waveforms, without a filter, are close to sine waves due to multiple PWM control\r\n
  \r\n
  • No cable length & motor type restrictions
  \r\n
  • Existing motor can be used without modifications
  \r\n
  • Reduced noise and vibration of motors
  \r\n
  • 3.3kV - 13 level/6.6kV - 25 level output
  \r\n
  \r\n
\r\n

Small footprint and economical maintenance

\r\n
• Small footprint and reduced installation costs due to no requirements for ancillary equipment such as input & output filter and the integral structure incorporating the input transformer and inverter panel
\r\n
• Thanks to the modular single-phase inverter of draw-out type, easy maintenance and time saving are achieved.
\r\n

Outstanding operation features by the improved sensorless vector control

\r\n
• Energy saving V/F control for the fluid load (Fan, Pump)
\r\n
• Inherent speed sensorless vector control of N5000\r\n
  \r\n
  • High starting torque operation
  \r\n
  • Control of current, speed and vibration of motor at the low speed range of light duty
  \r\n
  • Quick torque responsiveness and improved speed precision
  \r\n
  • Strong control regardless of motor specifications
  \r\n
  \r\n
\r\n

Functions for trip-free operation (Option)

Improved Cell Bypass

\r\n
• In case of cell failure during operation, the faulty cell will be bypassed and the neutral point will be shifted (balance is restored through angle adjustment). 92% of the rated voltage can be output after the failure of one cell.
\r\n

Redundant Inverter Controller

\r\n
• If the master controller is out of service during operation, output is generated due to automatic switching to the slave controller
\r\n

Redundant Fiber-Optic Cable for CAN Communication

\r\n
• If there are problems with the optic cable during operation, an automatic switching to the standby reserve optical communication H/W is made
\r\n

Redundant Control Power

\r\n
• The redundant control power module is equipped with AC 440V and DC 120V and monitors the control power. In case of the failure of a control power module, an automatic switching to the reserve module is made
\r\n

Certification (Korea Electro-Technology Research Institute)

Performance Test: Harmonics, Power Factor & Control

Environmental Tests of Cell Inverter and Control Parts: Constant Temperature, Vibration, EMI/EMC

Display

Inverter Operation Status Display

\r\n
• Operation frequency, input-output voltage, output current
\r\n
• Input-output of external signals
\r\n
• Warning status
\r\n

Inverter Fault Display

\r\n
• Fault type
\r\n
• Time of Fault
\r\n
• Operating frequency at time of fault
\r\n
• Voltage and current at time of fault
\r\n

Optional User Friendly PC-based Console (Option)

\r\n
• Remote operation and monitoring via laptop or desktop
\r\n
• Easy parameter setting and monitoring
\r\n
• Multiple communication interfaces (RS-232, RS-485, MODBUS)
\r\n
• Custom-made MMI display and upgrade support
\r\n
