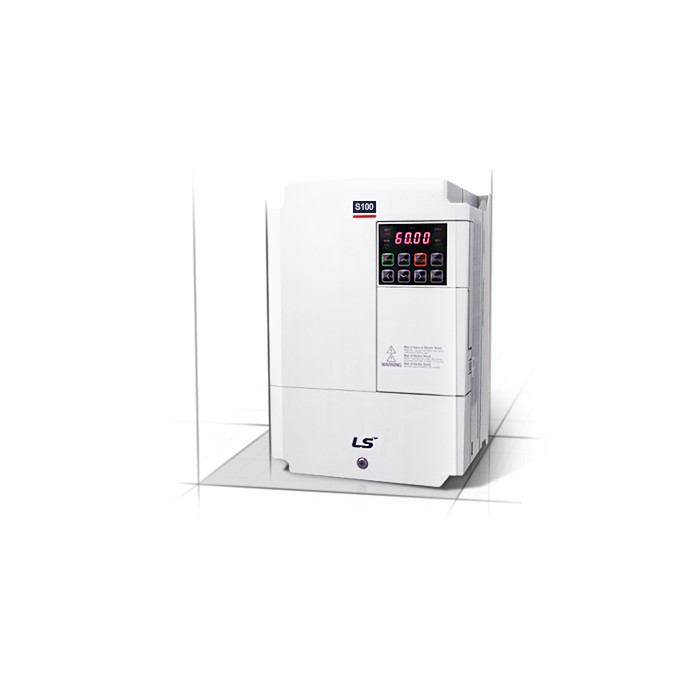

75HP & 60HP 460V LS Electric S100 VFD, Inverter, AC Drive LSLV0450S100-4COFDS

Brand: LS
Model: LSLV0450S100-4COFDS
Condition: New
Rating:
0% of 100

Out of stock

Highlights

  • Selectable V/f, Sensorless vector control
  • Built-in EMC Filter
  • Side by Side Installation
  • Enhanced Size Competitiveness
  • PLC Function (Simple Sequence Operation)
  • Compliance with Open Field Networks: Profibus-DP, CANopen, EtherNet
  • IP66 Enclosure (0.4~22kW)
  • PM Sensorless Control
  • P2P I/O Share Function
  • Capacitor/Fan Life Cycle Management Function
  • Smart Copier Option
Compare with similar items

Technical Specifications
Constant Torque / Variable Torque Variable Torque/Constant Torque
Phase Three Phase
Rated Input Frequency 60 Hz
Phase Rating 3 Phase Input - 3 Phase Output
Series S100
Enclosure Rating IP 20
Brand LS
Horsepower Rating 60 HP, 75 HP
Rated Voltage 460 V
Product Condition New
Output Voltage 460 V
Output Amperage Rating 91 A
Rated Amps 91 A
HP Rating @ 120% OL 75 HP
HP Rating @ 150% OL 60 HP
Amp Rating @ 120% OL 107 A
Amp Rating @ 150% OL 91 A
Model LSLV0450S100-4COFDS
Height 20.1 in
Width 12.8 in
Depth 11.2 in
Warranty 2 Year
Product Information

LS S100 Series

Powerful sensorless control, and a diverse range of user-friendly functions delivers added value to our customers. The S100 VFD is designed for end users who demand performance (200% starting torque at 0.5Hz), while also meeting the needs of global minded OEMs looking to consolidate their VFD portfolio. A new ground up NEMA 4X version is also available, furthering its ability to do more with the same platform.

Highlights

  • Selectable V/f, Sensorless vector control
  • Built-in EMC Filter
  • Side by Side Installation
  • Enhanced Size Competitiveness
  • PLC Function (Simple Sequence Operation)
  • Compliance with Open Field Networks: Profibus-DP, CANopen, EtherNet
  • IP66 Enclosure (0.4~22kW)
  • PM Sensorless Control
  • P2P I/O Share Function
  • Capacitor/Fan Life Cycle Management Function
  • Smart Copier Option
