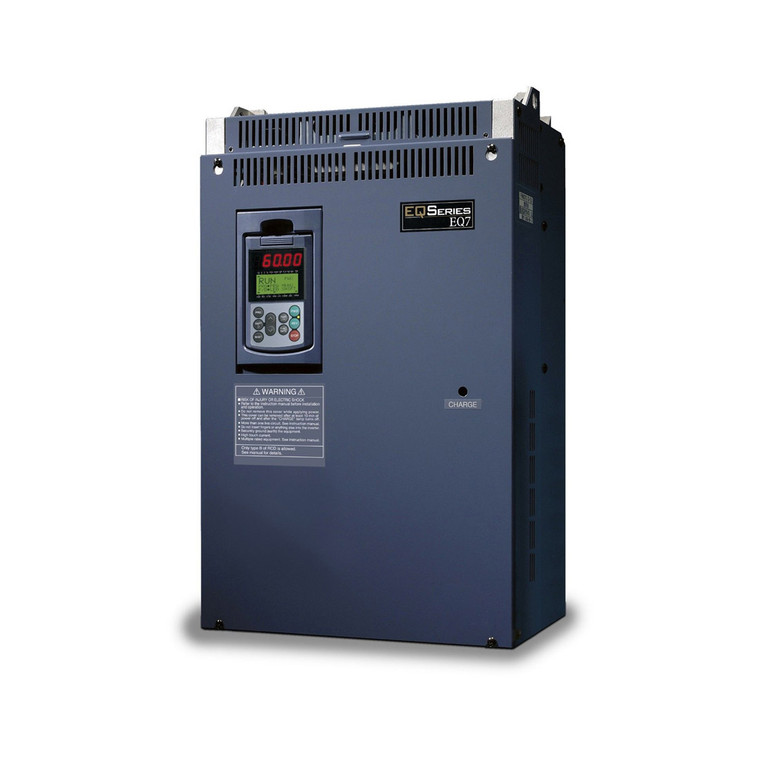

75HP 460V Teco VFD, Inverter, AC Drive EQ7-4075-C (EQ7-4075-C)

Brand:
TECO
Model:
EQ7-4075-C
Condition:
New
0 Customer Reviews
Out Of Stock
Adding to cart… The item has been added
  • V/F, Dynamic torque, Sensorless and Sensor (Encoder Feedback) Vector mode
  • Back-lit LCD
  • PID Control with Sleep Mode Function
  • Extensive I/O Capabilities
  • Built-in RS485 Communications (Modbus)
  • uL and CE Approved

Technical Specifications

Model:
EQ7-4075-C
Brand:
TECO
Product Condition:
New
Horsepower Rating:
60 HP
Horsepower Rating:
75 HP
HP Rating @ 110% OL:
75 HP
HP Rating @ 150% OL:
60 HP
Rated Amps:
91 A
Amp Rating @ 110% OL:
112 A
Amp Rating @ 150% OL:
91 A
Rated Voltage:
460 V
Output Voltage:
460 V
Output Amperage Rating:
112 A
Phase Rating:
3 Phase Input - 3 Phase Output
Phase:
Three Phase
Enclosure Rating:
IP 00
Series:
EQ7
Height:
24.21 in
Width:
13.98 in
Depth:
10.63 in

Product Information

TECO EQ7 Series

The EQ7 is a rugged and versatile drive with a wide range of ratings ideal for both simpler and more demanding applications. Designed for Constant and Variable Torque applications and containing many advanced features and functions.

The EQ7 is ideal for applications such as:

  • Crushers or Grinders
  • Compressors
  • Water and Wastewater
  • Positive Displacement Pumps
  • Fans and many more
