7.5HP 460V MDI Industrial Control Panel, Motor Control Panel, VFD Box, MF3R4007HA0040

Brand: Motor Drives International
Model: MF3R4007HA0040
Condition: New
Rating:
0% of 100

Out of stock

Highlights

  • Wall mountable and floor mountable NEMA 3R enclosure options
  • Up to 800 HP size options available
  • Mitsubishi F700 VFD (with 1 yr. warranty)
  • Standard 3% line reactor (5% option available)
  • Covered full function keypad (advanced keypad available)
  • Easy to remove washable poly filters
  • Remote I/O capability
  • Operator devices
  • Three contactor bypass optional add-on
  • Through door circuit breaker disconnect handle (padlockable)
  • Technical Specifications
    Phase Three Phase
    Circuit Breaker Yes
    Series F3R
    Mounting Type Wall Mountable
    Enclosure Rating UL Type 3R
    Brand Motor Drives International
    Horsepower Rating 7.5 HP
    Rated Voltage 460 V
    Product Condition New
    System Amps 12 A
    Output Voltage 460 V
    Rated Amps 12 A
    Model MF3R4007HA0040
    Height 36 in
    Width 24 in
    Depth 16 in
    Warranty 1 Year Manufacturer Warranty
    Product Information

    Motor Drives International F3R Series

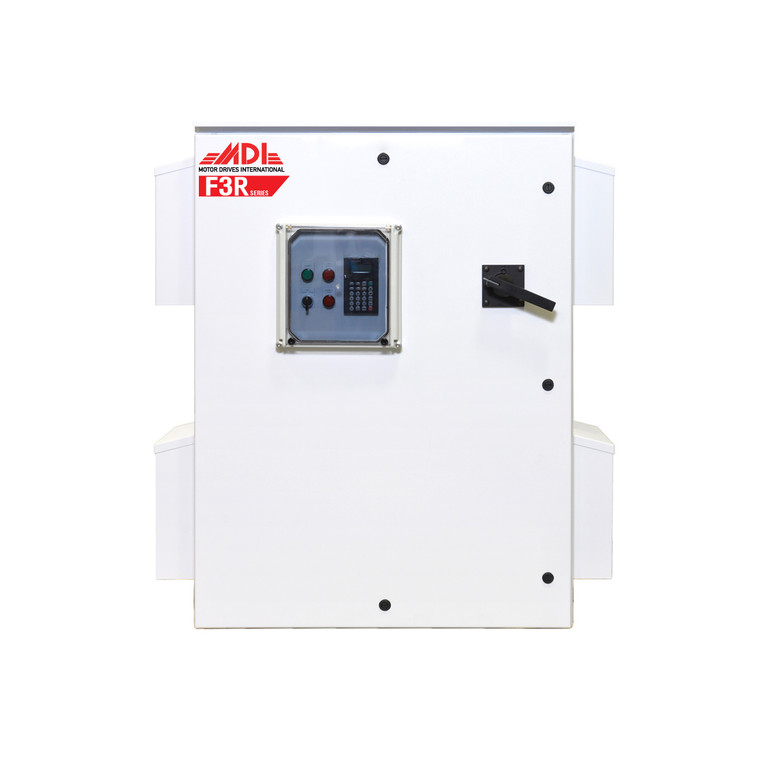

    The F3R Motor Control Panel

    Uniquely engineered to reflect and dissipate heat, the F3R is an all-in-one drive panel designed specifically for the outdoors. With forced air ventilation and exhaust, washable poly filters, and protective rain hoods, the F3R is ready for the elements.

    Highlights

  • Wall mountable and floor mountable NEMA 3R enclosure options
  • Up to 800 HP size options available
  • Mitsubishi F700 VFD (with 1 yr. warranty)
  • Standard 3% line reactor (5% option available)
  • Covered full function keypad (advanced keypad available)
  • Easy to remove washable poly filters
  • Remote I/O capability
  • Operator devices
  • Three contactor bypass optional add-on
  • Through door circuit breaker disconnect handle (padlockable)
  • Standard Features

    Product Details

    Manufacturer
    Motor Drives International

    Series
    F3R

    Model
    MF3R4007HA0040

    Condition
    New
    1 Year Manufacturer Warranty

    Horsepower
    7.5HP

    Maximum Amps
    12A

    Overload Rating
    110% for 60 seconds (40°C)
    120% for 60 seconds (40°C)

    Input
    3-Phase
    380 to 480V

    Output
    3-Phase
    380 to 480V

    Enclosure
    NEMA 3R

    Features
    Wall Mountable
    Circuit Breaker
    Advanced Keypad

    Dimensions
    Height: 36.00 in
    Width: 24.00 in
    Depth: 16.00 in
