Technical Specifications
Model:
ODP-2-34075-3HF4X-TN
Brand:
INVERTEK
Product Condition:
New
Warranty:
2 Year
Horsepower Rating:
7.5 HP
HP Rating @ 150% OL:
7.5 HP
Rated Amps:
14 A
Amp Rating @ 150% OL:
14 A
Rated Input Frequency:
60 Hz
Output Voltage:
480 V
Output Amperage Rating:
14 A
Phase Rating:
3 Phase Input - 3 Phase Output
Constant Torque / Variable Torque:
Variable Torque/Constant Torque
Phase:
Three Phase
Enclosure Rating:
IP 66
Frame Size:
3
Series:
Optidrive P2
Rated Voltage:
480 V
Height:
12.20 in
Width:
8.31 in
Depth:
10.47 in
Product Information

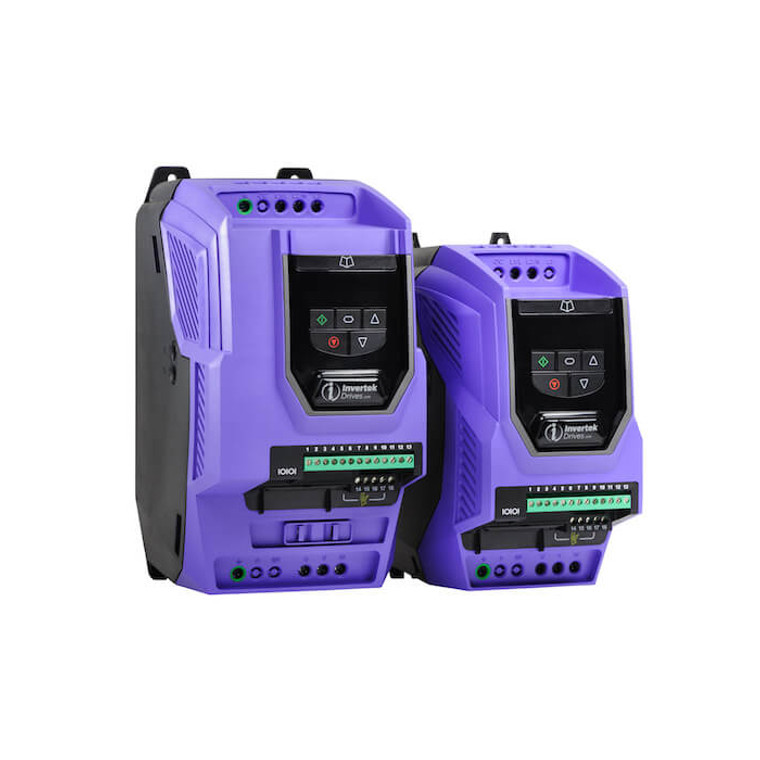

INVERTEK Optidrive P2 Series
Invertek focuses on sophisticated motor controls for energy savings. The Optidrive P2 is a high performance VFD that will help get the most out of your motor applications. With Invertek's standard ease of use, this drive can handle whatever you need.
Standard Features
- Advanced motor control with the latest hardware and algorithms
- Designed for fast installation and commissioning
- Simple PLC functionality
- Low ambient operation
- Dedicated hoist mode and integral brake transistor
- Internal EMC filter
