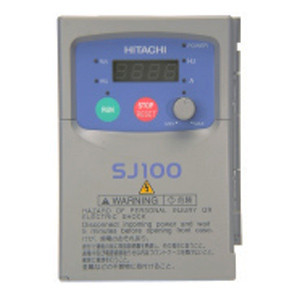

7.5HP 460V Hitachi VFD, Inverter, AC Drive SJ100-055HFU (SJ100-055HFU)

7.5HP 460V Hitachi VFD, Inverter, AC Drive SJ100-055HFU (SJ100-055HFU)

Brand:
HITACHI
Model:
SJ100-055HFU
Condition:
New with Defects or Obsolete
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Online Price: $1,100.00
Adding to cart… The item has been added
  • 200V and 400V class inverters
  • UL or CE version available
  • Sensorless vector control
  • Regenerative braking circuit
  • Convenient keypad for parameters settings
  • Built-in RS-422 communications interface to allow configuration from a PC and for field bus external modules
  • Sixteen programmable speed levels
  • Motor constants are programmable, or may be set via auto-tuning
  • PID control adjusts motor speed automatically to maintain a process variable value
  • High starting torque of 200% rating or greater
  • Continuous operation at 100% torque within a 1:10 speed range (6/60 Hz / 5/50 Hz) without motor derating
  • Fan has ON/OFF selection to provide longer life for cooling fan (on models with fan)
Write a Review

Technical Specifications

Model:
SJ100-055HFU
Brand:
HITACHI
Product Condition:
New with Defects or Obsolete
Horsepower Rating:
7.5 HP
HP Rating @ 150% OL:
7.5 HP
Rated Amps:
13 A
Amp Rating @ 150% OL:
13 A
Rated Voltage:
460 V
Output Voltage:
460 V
Output Amperage Rating:
13 A
Phase Rating:
3 Phase Input - 3 Phase Output
Phase:
Three Phase
Enclosure Rating:
IP 20
Series:
SJ100
Height:
10.12 in
Width:
7.17 in
Depth:
6.69 in

Product Information

HITACHI SJ100 Series

The Hitachi SJ100 series of VSD Variable frequency drive is a small low cost inverter suitable for standard AC motors.

Download Manual
