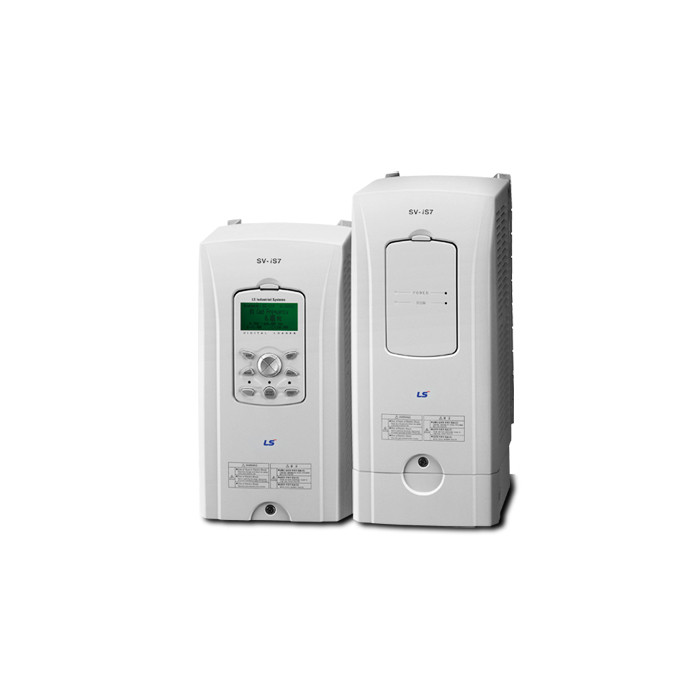

75HP & 60HP 460V LS Electric iS7 VFD, Inverter, AC Drive SV0450IS7-4NOD (6121001300)

75HP & 60HP 460V LS Electric iS7 VFD, Inverter, AC Drive SV0450IS7-4NOD (6121001300)

Brand:
LS
Model:
6121001300
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
List Price:  $5,936.36
Online Price: $4,452.27
Adding to cart… The item has been added
  • Constant torque / Variable torque dual rating
  • Selectable V/f, V/f PG, sensorless vector, sensored vector
  • 150 MIPS(million instructions per second) high speed DSP
  • High performances and functions
  • Easy to control: Easy Start Mode, User and Macro group, Multi Function Key
  • 2nd motor sensorless control and parameter setting
  • Available IP54 enclosure as built-in option
  • Built-in RS485(LS Bus / Modbus RTU) communication
  • Wide graphic LCD keypad (6 different languages)
Write a Review

Technical Specifications

Model:
SV0450IS7-4NOD
Brand:
LS
Product Condition:
New
Warranty:
2 Year
Series:
iS7
Horsepower Rating:
60 HP
Horsepower Rating:
75 HP
HP Rating @ 110% OL:
75 HP
HP Rating @ 150% OL:
60 HP
Rated Amps:
91 A
Rated Amps:
110 A
Amp Rating @ 110% OL:
110 A
Amp Rating @ 150% OL:
91 A
Rated Voltage:
460 V
Rated Input Frequency:
60 Hz
Output Voltage:
460 V
Output Amperage Rating:
91 A
Phase Rating:
3 Phase Input - 3 Phase Output
Constant Torque / Variable Torque:
Variable Torque/Constant Torque
Phase:
Three Phase
Enclosure Rating:
IP 21
Height:
23.38 in
Width:
11.81 in
Depth:
11.92 in

Product Information

LS iS7 Series

INV,SV0450IS7-4NOD(EXPORT)
Download Manual
