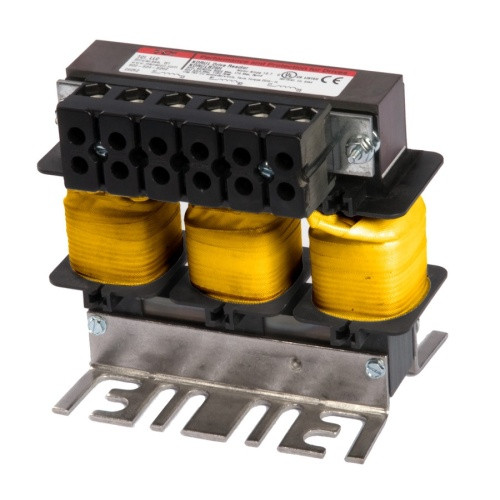

60HP 480V TCI 5% Line Reactor KDRF2H (KDRF2H)
Technical Specifications
Product Information
TCI Series
Reactor Details
Manufacturer
TCI
Series
KDR
Model
KDRA9L
Condition
New
Impedance
3% (Low Z)
Horse Power
1.5 HP
Voltage
480V
Enclosure
Open
DimensionsÂ
Height: 4.0 in
Width: 4.18 in
Depth: 3.75 in
A Cost-Effective Line Reactor with a Brand Name You Can Trust
KDR Optimized Line Reactors applied to the line side of a PWM drive will greatlyÂ
improve the overall performance of the drive. The additional circuit inductanceÂ
will reduce AC voltage waveform line notching, DC bus overvoltage trips, inverterÂ
overvoltage, poor total power factor, and cross-talk.
Â
Use KDR Low “Z†Units For:
These units can be used in any applications where
traditionally either a 1.5% or 3% reactor would be
applied.
Reduction of nuisance tripping caused by:
Transient voltages caused by capacitor switching
Line notching
DC bus overvoltage tripping
Inverter overcurrent and overvoltage
Additional benefits include:
Lowering injected percentage of harmonic current
Improving true power factor
Reducing cross-talk between drives
