6031005300 (6031005300)

Brand:
LS
Model:
6031005300
Condition:
New
0 Customer Reviews
In Stock
List Price:  $3,392.97
Online Price: $2,510.80
Adding to cart… The item has been added
  • Selectable V/f, Sensorless vector control
  • Built-in EMC Filter
  • Side by Side Installation
  • Enhanced Size Competitiveness
  • PLC Function (Simple Sequence Operation)
  • Compliance with Open Field Networks: Profibus-DP, CANopen, EtherNet
  • IP66 Enclosure (0.4~22kW)
  • PM Sensorless Control
  • P2P I/O Share Function
  • Capacitor/Fan Life Cycle Management Function
  • Smart Copier Option

Technical Specifications

Series:
S100
Model:
6031005300
Brand:
LS
Product Condition:
New
Horsepower Rating:
30 HP
HP Rating @ 150% OL:
30 HP
Rated Amps:
45 A
Rated Voltage:
480 V
Output Voltage:
480 V
Phase Rating:
3 Phase Input - 3 Phase Output
Constant Torque / Variable Torque:
Variable Torque/Constant Torque
Phase:
Three Phase
Enclosure Rating:
IP 66

Product Information

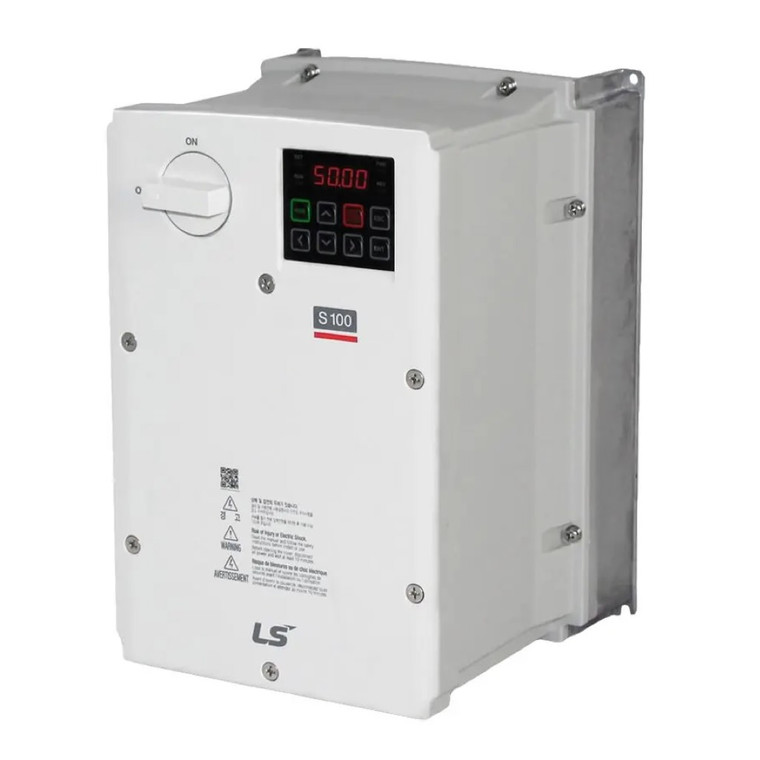

LS S100 Series

The LS S100 VFD is a standard, industrial drive that helps in a wide range of applications. With options for single- and three-phase input, as well as options for IP66 ratings, the S100 has options for most situations.
