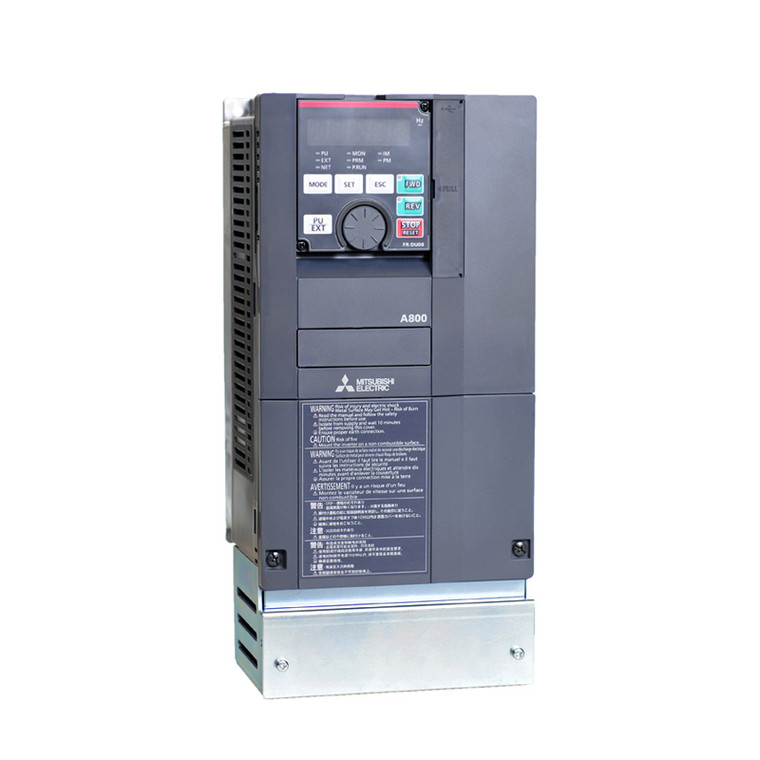

60HP 230V Mitsubishi A800E VFD, Inverter, AC Drive FR-A820-01870-E160
Brand: MITSUBISHI
Model: FR-A820-01870-E160
Condition: New
Kit Includes:
Highlights
- Optimum excitation control for reducing energy consumption - We have adopted and perfected optimum excitation control to ensure that the energy-saving effects are realized during constant torque as well as during the motor’s acceleration/deceleration operations.
- Ethernet Communications as Standard - Communicate with Modbus TCP/IP or CC-Link IE Field Basic communications networks at a speed of 100Mbps without the need for an extra option card.
- Automatic IP Address Detection - Automatically detect the IP address of all connected drives, quickly enabling connection and programming using FR-Configurator2 software.
- Remote Operation - Communicate with a drive remotely for commissioning, monitoring or troubleshooting anytime from anywhere.
- CC-Link IE Field Network Basic - Fast and dependable connection to Mitsubishi Electric PLCs, servos, and robots through the CC-Link IE Field basic system for a complete factory solution.
- Multiple Protocol Capability - Network option cards offer connection to other drive based networks and a higher level information system.
- Drive to Drive Communications - Utilize the internal PLC to communicate without a master PLC controller allowing the drives to work together as a team.
- Reduced Cost - Standard Ethernet connectivity without add-on modules.
Compare with similar items
This Item
|
|
|
|
|
|
|
| 60HP 230V Mitsubishi A800E VFD, Inverter, AC Drive FR-A820-01870-E160 | 60HP 230V Delta CP2000 VFD, Inverter, AC Drive VFD450CP23A-21 | 60HP 230V Delta CP2000 VFD, Inverter, AC Drive VFD550CP23A-21 | 60HP 230V Mitsubishi F800E VFD, Inverter, AC Drive FR-F820-01870-E360 | 60HP & 75HP 230V Saftronics VFD, Inverter, AC Drive GP102075-9 | 60HP & 50HP 230V Mitsubishi VFD, Inverter, AC Drive FR-A820-01870-1-60 | |
| Ratings | ||||||
| Price |
List Price
$8,365.00
Online Price
$6,273.75
|
$2,535.00
|
$3,763.00
|
List Price
$6,835.00
Online Price
$5,126.25
|
$1,999.99
|
List Price
$8,365.00
Online Price
$6,273.75
|
| Free Shipping |
No |
No |
Yes |
Yes |
No |
Yes |
| Series |
A800E
|
CP2000
|
CP2000
|
F800E
|
GP10
|
A800
|
| Rated Amps |
115 A, 145 A, 170 A, 187 A
|
180 A
|
180 A
|
170 A, 187 A
|
180 A
|
115 A, 145 A, 170 A, 187 A
|
| Enclosure Rating |
IP 00
|
IP 20
|
IP 00
|
IP 00
|
IP 00
|
IP 00
|
| Frame Size |
H
|
D2
|
E2
|
H
|
|
|
| Brand |
MITSUBISHI
|
Delta
|
Delta
|
MITSUBISHI
|
Saftronics
|
MITSUBISHI
|
| Horsepower Rating |
40 HP, 50 HP, 60 HP
|
60 HP
|
60 HP
|
60 HP
|
60 HP, 75 HP
|
40 HP, 50 HP, 60 HP
|
| Rated Voltage |
230 V
|
230 V
|
230 V
|
230 V
|
230 V
|
230 V
|
| Model |
FR-A820-01870-E160
|
VFD450CP23A-21
|
VFD550CP23A-21
|
FR-F820-01870-E360
|
GP102075-9
|
FR-A820-01870-1-60
|
Technical Specifications
| Phase Rating | 3 Phase Input - 3 Phase Output |
|---|---|
| Rated Input Frequency | 60 Hz |
| Series | A800E |
| Phase | Three Phase |
| Rated Amps | 115 A, 145 A, 170 A, 187 A |
| Enclosure Rating | IP 00 |
| Frame Size | H |
| Brand | MITSUBISHI |
| Horsepower Rating | 40 HP, 50 HP, 60 HP |
| Rated Voltage | 230 V |
| Product Condition | New |
| Output Voltage | 230 V |
| Output Amperage Rating | 187 A |
| HP Rating @ 110% OL | 60 HP |
| HP Rating @ 120% OL | 60 HP |
| HP Rating @ 150% OL | 50 HP |
| HP Rating @ 200% OL | 40 HP |
| Amp Rating @ 110% OL | 187 A |
| Amp Rating @ 120% OL | 170 A |
| Amp Rating @ 150% OL | 145 A |
| Amp Rating @ 200% OL | 115 A |
| Model | FR-A820-01870-E160 |
| Height | 21.65 in |
| Width | 17.13 in |
| Depth | 9.84 in |
Product Information
MITSUBISHI A800E Series
FR-A800-E Series with Built-in Ethernet Communication
The FR-A800-E adds an integrated web server and 100Mbit Ethernet TCP/IP connectivity as standard to the existing network options of the FR-A800 flagship multi-use inverter. The FR-A800-E provides machine builders and systems integrators an increased ability for remote system monitoring and parameter adjustment, as well as easy integration into existing network environments.
**FR-A800-E Series Drives Have Removed RS485 Terminals**
Highlights
- Optimum excitation control for reducing energy consumption - We have adopted and perfected optimum excitation control to ensure that the energy-saving effects are realized during constant torque as well as during the motor’s acceleration/deceleration operations.
- Ethernet Communications as Standard - Communicate with Modbus TCP/IP or CC-Link IE Field Basic communications networks at a speed of 100Mbps without the need for an extra option card.
- Automatic IP Address Detection - Automatically detect the IP address of all connected drives, quickly enabling connection and programming using FR-Configurator2 software.
- Remote Operation - Communicate with a drive remotely for commissioning, monitoring or troubleshooting anytime from anywhere.
- CC-Link IE Field Network Basic - Fast and dependable connection to Mitsubishi Electric PLCs, servos, and robots through the CC-Link IE Field basic system for a complete factory solution.
- Multiple Protocol Capability - Network option cards offer connection to other drive based networks and a higher level information system.
- Drive to Drive Communications - Utilize the internal PLC to communicate without a master PLC controller allowing the drives to work together as a team.
- Reduced Cost - Standard Ethernet connectivity without add-on modules.
