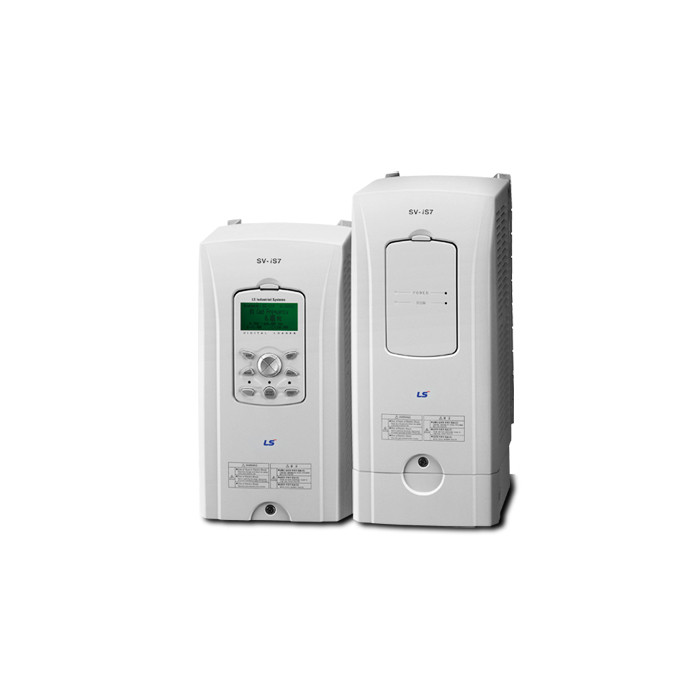

7.5HP & 5HP 230V LS Electric iS7 VFD, Inverter, AC Drive SV0037IS7-2NOFD (6120000400)

7.5HP & 5HP 230V LS Electric iS7 VFD, Inverter, AC Drive SV0037IS7-2NOFD (6120000400)

Brand:
LS
Model:
6120000400
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
List Price:  $1,272.23
Online Price: $954.17
Adding to cart… The item has been added
  • Constant torque / Variable torque dual rating
  • Selectable V/f, V/f PG, sensorless vector, sensored vector
  • 150 MIPS(million instructions per second) high speed DSP
  • High performances and functions
  • Easy to control: Easy Start Mode, User and Macro group, Multi Function Key
  • 2nd motor sensorless control and parameter setting
  • Available IP54 enclosure as built-in option
  • Built-in RS485(LS Bus / Modbus RTU) communication
  • Wide graphic LCD keypad (6 different languages)
Write a Review

Technical Specifications

Model:
SV0037IS7-2NOFD
Brand:
LS
Product Condition:
New
Warranty:
2 Year
Series:
iS7
Horsepower Rating:
5 HP
Horsepower Rating:
7.5 HP
HP Rating @ 110% OL:
7.5 HP
HP Rating @ 150% OL:
5 HP
Rated Amps:
16 A
Rated Amps:
24 A
Amp Rating @ 110% OL:
24 A
Amp Rating @ 150% OL:
16 A
Rated Voltage:
230 V
Rated Input Frequency:
60 Hz
Output Voltage:
230 V
Output Amperage Rating:
16 A
Phase Rating:
3 Phase Input - 3 Phase Output
Constant Torque / Variable Torque:
Variable Torque/Constant Torque
Phase:
Three Phase
Enclosure Rating:
IP 21
Height:
11.18 in
Width:
5.90 in
Depth:
7.87 in

Product Information

LS iS7 Series

INV,SV0037IS7-2NOFD(EXPORT)
Download Manual
