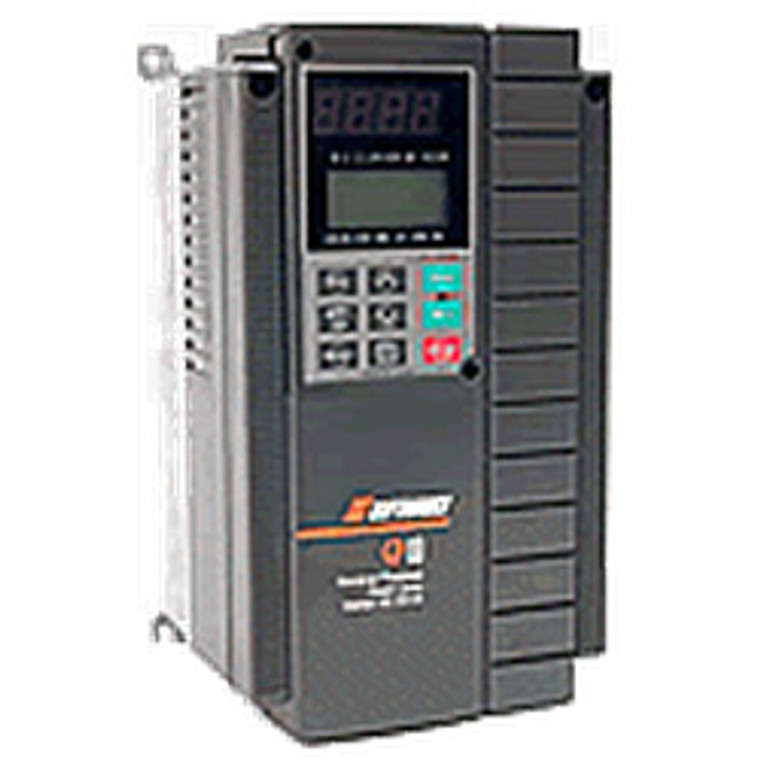

5HP 460V Saftronics VFD, Inverter, AC Drive GP104005-4M

Brand: Saftronics
Model: GP104005-4M
Condition: New Surplus
Rating:
0% of 100

Out of stock
$712.99
Compare with similar items

Technical Specifications
Phase Rating 3 Phase Input - 3 Phase Output
Constant Torque / Variable Torque Variable Torque
Series GP10
Phase Three Phase
Rated Amps 9 A
Enclosure Rating UL Type 4
Brand Saftronics
Horsepower Rating 5 HP
Rated Voltage 460 V
Product Condition New Surplus
Output Voltage 460 V
Output Amperage Rating 9 A
HP Rating @ 150% OL 5 HP
Amp Rating @ 150% OL 9 A
Model GP104005-4M
Height 10.24 in
Width 5.91 in
Depth 5.71 in
Product Information

Saftronics GP10 Series

The GP10 is manufactured as a general-purpose drive with built-in attributes including speed search, disable reverse operation, automatic restart, and Soft-Switching Technology. This makes the GP10 an optimal drive for fans or pumps.

Standard Features

  • Both open loop (Sensorless) vector and Volts / Hertz control methods
  • ?0.2% speed control accuracy
  • Motor auto tuning including full dynamic tuning (spinning motor), static tuning (loaded motor, not spinning), and On-line tuning (continuous tuning while running)
  • Graphic back-lit LCD keypad with digital LEDs
  • Copy function
  • Soft Switching Technology to eliminate output filters
  • PID control
  • Smart speed search
  • Two second control power ride through
  • Serial communication (RS485 Modbus Standard; LonWorks, DeviceNet, Metasys N2, Profibus-DP, Canbus and Interbus-S optional)
  • Built in dynamic breaking
  • Programmable I/O
  • Overtorque detection
  • Dual motor parameter table
  • Saflink compatible
  • Uniform programming parameters with VG10
