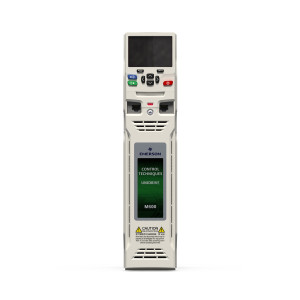

5HP 460V Control Techniques VFD, Inverter, AC Drive M700-03400062A (M700-03400062A)

Brand:
Control Techniques
Model:
M700-03400062A
Condition:
New
0 Customer Reviews
Out Of Stock
Adding to cart… The item has been added
  • Maximize throughput with superior motor control
  • Optimize system performance with onboard Advanced Motor Controller
  • Design flexible centralized and decentralized control systems
  • Unidrive M700 and Unidrive M702 onboard communications
  • Unidrive M701 onboard communications
  • Conform to safety standards, maximize uptime and reduce costs by integrating directly with safety systems

Technical Specifications

Model:
M700-03400062A
Brand:
Control Techniques
Product Condition:
New
Horsepower Rating:
3 HP
Horsepower Rating:
5 HP
HP Rating @ 110% OL:
5 HP
HP Rating @ 150% OL:
3 HP
Rated Amps:
6.2 A
Amp Rating @ 110% OL:
7.7 A
Amp Rating @ 150% OL:
6.2 A
Rated Voltage:
460 V
Output Voltage:
460 V
Output Amperage Rating:
6.2 A
Phase Rating:
3 Phase Input - 3 Phase Output
Phase:
Three Phase
Enclosure Rating:
IP 20
Series:
M700
Rated Amps:
7.7 A
Height:
15.00 in
Width:
3.30 in
Depth:
7.90 in

Product Information

Control Techniques M700 Series

The M700 delivers maximum machine throughput through greater control with single and multi-axis network synchronization. Onboard real-time Ethernet (IEEE 1588 V2), advanced motion control and high speed I/O for position capture enables machine builders to easily create more sophisticated and flexible machines. Typical applications include:

  • Speed position control for gearing and ratio control
  • Winding (coilers)
  • Web handling
  • Metal cutting
  • Flying shear and many more

The M700 is a fully compatible upgrade for existing Unidrive SP users.
