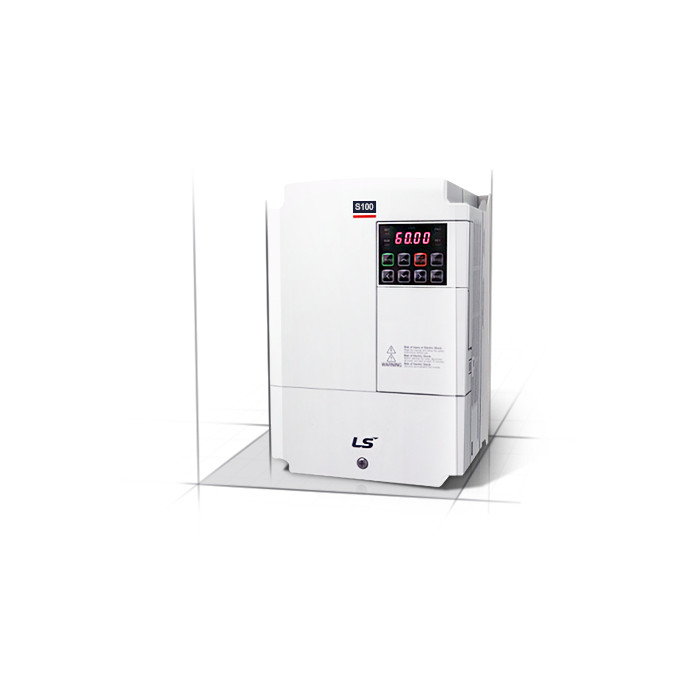

5HP & 3HP 460V LS Electric S100 VFD, Inverter, AC Drive LSLV0022S100-4EOFNS (6031007400)

Brand:
LS
Model:
6031007400
Condition:
New
0 Customer Reviews
Out Of Stock
List Price:  $851.72
Online Price: $638.79
Adding to cart… The item has been added
  • Selectable V/f, Sensorless vector control
  • Built-in EMC Filter
  • Side by Side Installation
  • Enhanced Size Competitiveness
  • PLC Function (Simple Sequence Operation)
  • Compliance with Open Field Networks: Profibus-DP, CANopen, EtherNet
  • IP66 Enclosure (0.4~22kW)
  • PM Sensorless Control
  • P2P I/O Share Function
  • Capacitor/Fan Life Cycle Management Function
  • Smart Copier Option

Technical Specifications

Model:
LSLV0022S100-4EOFNS
Brand:
LS
Product Condition:
New
Warranty:
2 Year
Series:
S100
Horsepower Rating:
3 HP
Horsepower Rating:
5 HP
HP Rating @ 120% OL:
5 HP
HP Rating @ 150% OL:
3 HP
Rated Amps:
5.5 A
Rated Amps:
6.9 A
Amp Rating @ 120% OL:
6.9 A
Amp Rating @ 150% OL:
5.5 A
Rated Voltage:
460 V
Rated Input Frequency:
60 Hz
Output Voltage:
460 V
Output Amperage Rating:
5.5 A
Phase Rating:
3 Phase Input - 3 Phase Output
Constant Torque / Variable Torque:
Variable Torque/Constant Torque
Phase:
Three Phase
Enclosure Rating:
IP 20
Height:
7.09 in
Width:
3.94 in
Depth:
5.51 in

Product Information

LS S100 Series

INV,LSLV0022S100-4EOFNS(EXPORT)
