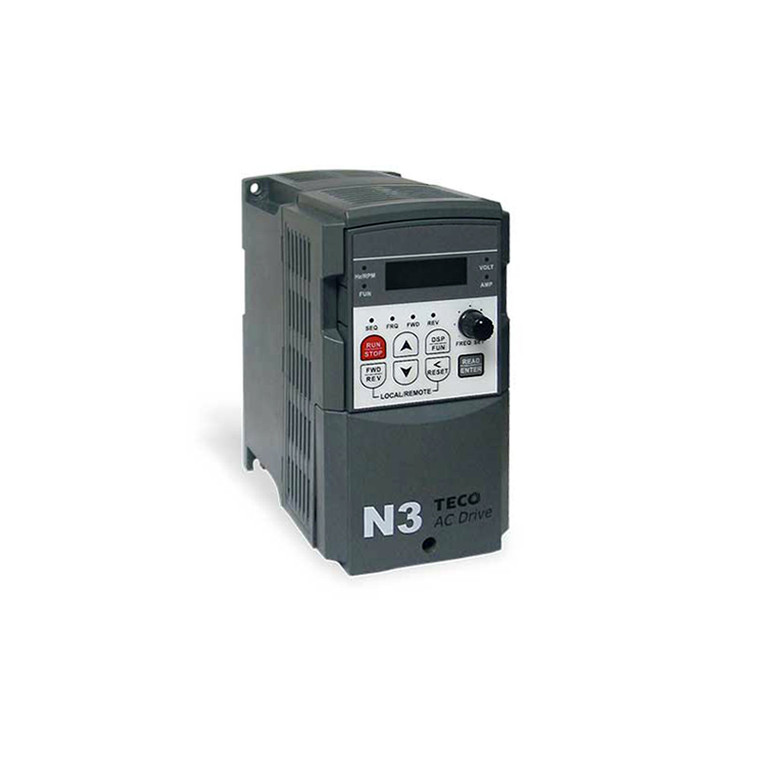

5HP 230V Teco N3 VFD, Inverter, AC Drive N3-205-C-U (N3-205-C-U)

5HP 230V Teco N3 VFD, Inverter, AC Drive N3-205-C-U (N3-205-C-U)

Brand:
TECO
Model:
N3-205-C-U
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
  • PID Control
  • Sleep Mode
  • Standard Unit with LED Display
  • RS485 and RS232 Interface Option
  • Multi-function Digital and Analog Inputs/ Outputs
  • Built-in BACNet Communications
  • UL, cUL, and CE Approved
Write a Review

Technical Specifications

Model:
N3-205-C-U
Brand:
TECO
Product Condition:
New
HP Rating @ 150% OL:
5 HP
Amp Rating @ 150% OL:
17.5 A
Output Voltage:
230 V
Output Amperage Rating:
17.5 A
Phase Rating:
3 Phase Input - 3 Phase Output
Phase:
Three Phase
Constant Torque / Variable Torque:
Variable Torque
Horsepower Rating:
5 HP
Rated Amps:
17.5 A
Rated Voltage:
230 V
Enclosure Rating:
IP 20
Series:
N3
Height:
7.36 in
Width:
5.04 in
Depth:
5.83 in

Product Information

TECO N3 Series

The N3 is a compact, low cost, and versatile AC Drive that can operate in constant torque, variable torque, or sensorless vector modes for maximum application flexibility.

Download Manual
