Technical Specifications
Model:
ODP-2-32050-3HF4X-TN
Brand:
INVERTEK
Product Condition:
New
Warranty:
2 Year
Horsepower Rating:
5 HP
HP Rating @ 150% OL:
5 HP
Rated Amps:
18 A
Amp Rating @ 150% OL:
18 A
Rated Voltage:
230 V
Rated Input Frequency:
60 Hz
Output Voltage:
230 V
Output Amperage Rating:
18 A
Phase Rating:
3 Phase Input - 3 Phase Output
Constant Torque / Variable Torque:
Variable Torque/Constant Torque
Phase:
Three Phase
Enclosure Rating:
IP 66
Frame Size:
3

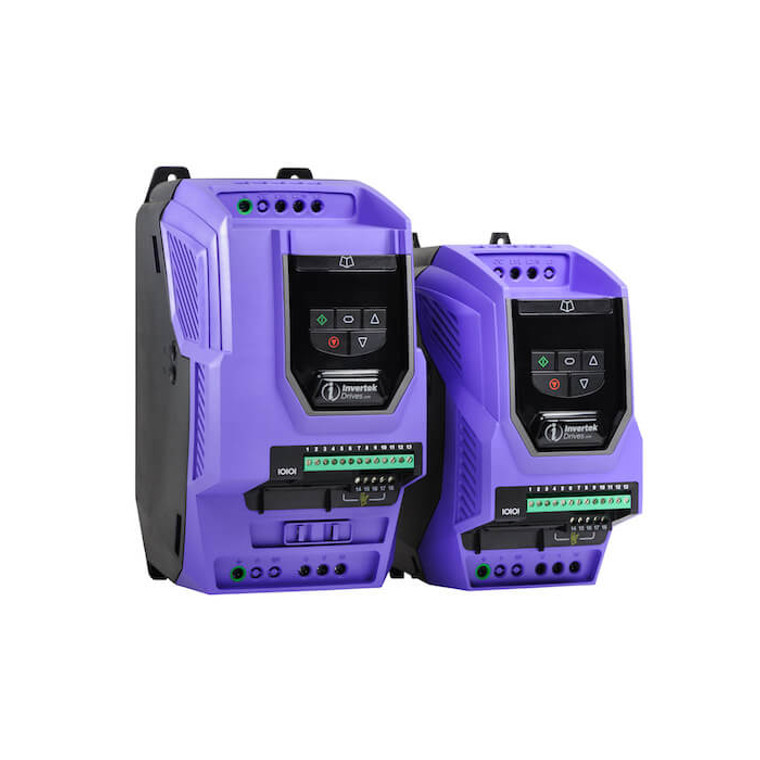

Series:
Optidrive P2
Height:
12.20 in
Width:
8.31 in
Depth:
10.47 in
