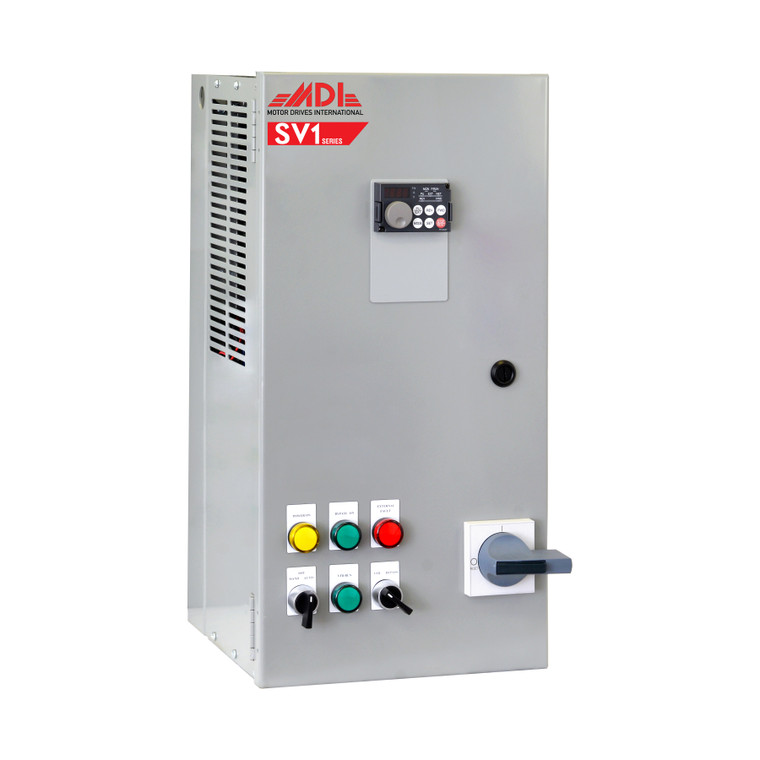

5HP 208V MDI Industrial Control Panel, Motor Control Panel, VFD Box, MSV12005HA1130

Model: MSV12005HA1130
Condition: New
Rating:
0% of 100

In stock
List Price $5,693.93 Online Price $4,270.93

Highlights

  • Slim wall mountable NEMA 1 design
  • Mitsubishi F700 (with 1 yr. warranty)
  • Standard 3% line reactor (5% option available)
  • Full function keypad (advanced keypad available)
  • Remote I/O capability
  • Operator devices
  • Three contactor bypass optional add-on
  • Through door circuit breaker disconnect handle (padlockable)
  • Technical Specifications
    Free Standing Yes
    Bypass Yes
    Series SV1
    Phase Three Phase
    Circuit Breaker Yes
    Line Reactor Yes
    Brand Motor Drives International
    Mounting Type Wall Mountable, Free Standing
    Enclosure Rating UL Type 1
    Horsepower Rating 5 HP
    Rated Voltage 230 V
    Duty Cycle Continuous
    Product Condition New
    System Amps 16.7 A
    Output Voltage 230 V
    Rated Amps 16.7 A
    Model MSV12005HA1130
    Height 24 in
    Width 12 in
    Depth 11 in
    Warranty 1 Year Manufacturer Warranty
    Product Information

    Motor Drives International SV1 Series

    The SVI Motor Control Panel

    Only 12” wide, the SV1 is our slimmest standard enclosed VFD panel. With a durable Mitsubishi Variable Frequency Drive, circuit breaker, options for many control protocols, and 3% line reactors, the SV1 is a smart choice for HVAC and pumping applications.

    Highlights

  • Slim wall mountable NEMA 1 design
  • Mitsubishi F700 (with 1 yr. warranty)
  • Standard 3% line reactor (5% option available)
  • Full function keypad (advanced keypad available)
  • Remote I/O capability
  • Operator devices
  • Three contactor bypass optional add-on
  • Through door circuit breaker disconnect handle (padlockable)
  • Standard Features

    Product Details

    Manufacturer
    Motor Drives International

    Series
    SV1

    Model
    MSV12005HA1130

    Condition
    New
    1 Year Manufacturer Warranty

    Horsepower
    5HP

    Maximum Amps
    16.7A

    Overload Rating
    110% for 60 seconds (40°C)
    120% for 60 seconds (40°C)

    Input
    3-Phase
    200 to 240V

    Output
    3-Phase
    200 to 240V

    Enclosure
    NEMA 1

    Features
    Wall Mountable
    Circuit Breaker
    3 Contactor Bypass Arrangement

    Dimensions
    Height: 24.00 in
    Width: 12.00 in
    Depth: 11.00 in
