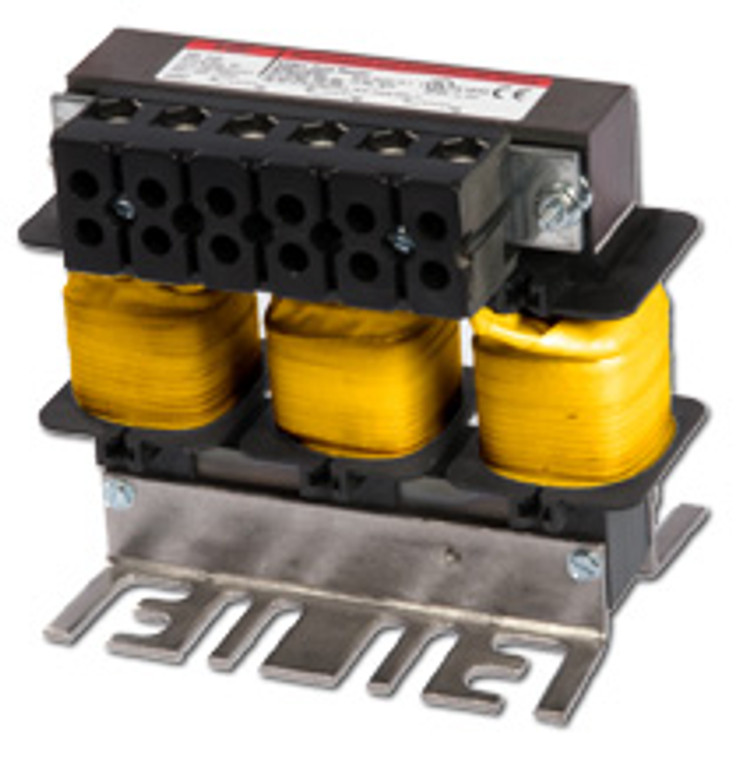

5HP 208/240V TCI 3% Line Reactor KDRB22L

Brand: TCI
Model: KDRB22L
Condition: Used
Rating:
0% of 100

In stock
$135.99

Highlights

  • Lowering injected percentage of harmonic current
  • Improving true power factor
  • Reducing cross-talk between drives
  • Technical Specifications
    Brand TCI
    Product Condition Used
    Model KDRB22L
    Product Information

    TCI Series

    A Cost-Effective Line Reactor with a Brand Name You Can Trust

    KDR Optimized Line Reactors applied to the line side of a PWM drive will greatly
    improve the overall performance of the drive. The additional circuit inductance
    will reduce AC voltage waveform line notching, DC bus overvoltage trips, inverter
    overvoltage, poor total power factor, and cross-talk.
    Use KDR Low “Z” Units For:
    These units can be used in any applications where
    traditionally either a 1.5% or 3% reactor would be
    applied.
    Reduction of nuisance tripping caused by:
    • Transient voltages caused by capacitor switching
    • Line notching
    • DC bus overvoltage tripping
    • Inverter overcurrent and overvoltage
    Additional benefits include:

    Highlights

  • Lowering injected percentage of harmonic current
  • Improving true power factor
  • Reducing cross-talk between drives
  • Standard Features

    Reactor Details

    Manufacturer
    TCI

    Series
    KDR

    Model
    KDRB22L

    Condition
    New

    Impedance
    3% (Low Z)

    Horse Power
    5 HP

    Voltage
    208/240V

    Enclosure
    Open

    Dimensions
    Height: 5.00 in
    Width: 6.00 in
    Depth: 4.00 in
