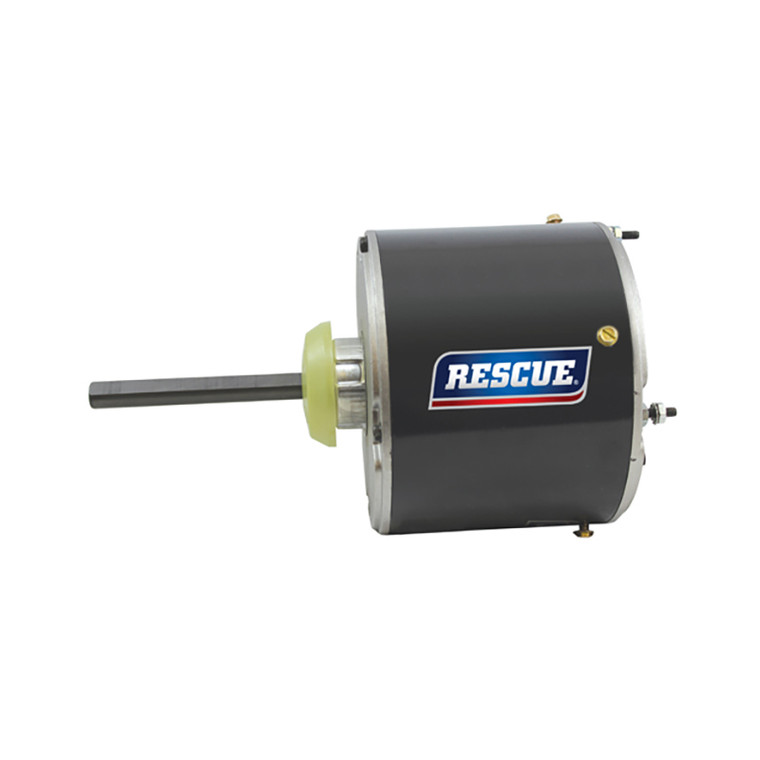

US Motors (Nidec), AC Motor, 5462H, 0.33 , .133 HP, 1200 RPM, Single Phase, 208-230 V, 60 Hz, 48Y (5462H)

US Motors (Nidec), AC Motor, 5462H, 0.33 , .133 HP, 1200 RPM, Single Phase, 208-230 V, 60 Hz, 48Y (5462H)

Brand:
US Motors (Nidec)
Model:
5462H
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
K055CLF0586012B
Brand:
US Motors (Nidec)
Product Condition:
New
Horsepower Rating:
0.133 HP
Horsepower Rating:
0.33 HP
Synchronous RPM:
1200 RPM
Rated RPM:
1075 RPM
Frame Size:
48Y
Rated Supply Voltage:
208-230 V
Motor Enclosure Type:
Totally Enclosed Air Over (TEAO)
Full Load Torque:
26.01
Rated Voltage:
208 V
Rated Voltage:
230 V
Phase:
Single Phase
Insulation Class:
F
Duty Cycle:
Continuous
C Dimension:
9.6
Bearing Type:
BALL
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
2.6/1.8 A

Product Information

US Motors (Nidec) Series

1/3 / 1/6 HP, 1075 RPM, 5462H, 208-230 V, 60 HZ, 48Y
