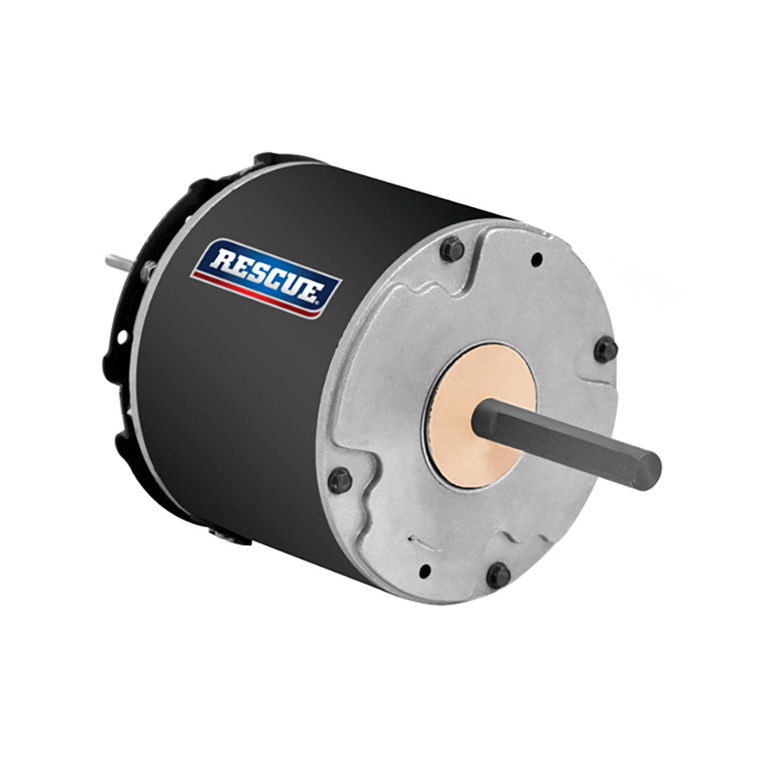

US Motors (Nidec), AC Motor, 5442H, 0.25 , .125 HP, 1800 RPM, Single Phase, 208-230 V, 60 Hz, 42Y (5442H)

US Motors (Nidec), AC Motor, 5442H, 0.25 , .125 HP, 1800 RPM, Single Phase, 208-230 V, 60 Hz, 42Y (5442H)

Brand:
US Motors (Nidec)
Model:
5442H
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
5442H
Brand:
US Motors (Nidec)
Product Condition:
New
Horsepower Rating:
0.125 HP
Horsepower Rating:
0.25 HP
Synchronous RPM:
1800 RPM
Rated RPM:
1625 RPM
Frame Size:
42Y
Rated Supply Voltage:
208-230 V
Full Load Torque:
12.91
Rated Voltage:
208 V
Rated Voltage:
230 V
Phase:
Single Phase
Service Factor:
1
Insulation Class:
B
Duty Cycle:
Continuous
Bearing Type:
BALL
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
1.5 A

Product Information

US Motors (Nidec) Series

1/4 / 1/8 HP, 1625 RPM, 5442H, 208-230 V, 60 HZ, 42Y
