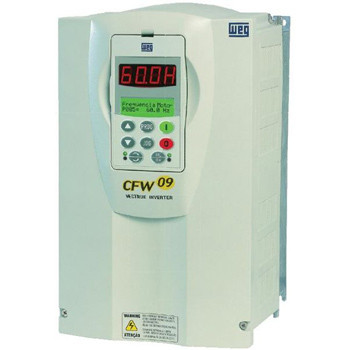

50HP 230V WEG VFD, Inverter, AC Drive CFW-090130TDDBZ (CFW-090130TDDBZ)

50HP 230V WEG VFD, Inverter, AC Drive CFW-090130TDDBZ (CFW-090130TDDBZ)

Brand:
WEG
Model:
CFW-090130TDDBZ
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
  • V/Hz or Sensorless Vector Control via parameter selection
  • Self-tuning to motor parameters
  • NEMA 1 Enclosure up to 200HP
  • IP20 “Finger Safe” Enclosure from 250 to 500HP
  • 200-240V or 380-480V input voltage
  • Single or Three-phase input voltage up to 3HP/230V
  • 150% current overload capacity
  • DC bus connections accessible
  • Detachable Smart Keypad with dual display and Copy Function
  • 32 bit RISC microprocessor controlled PWM output
  • 1.25 / 2.5 / 5 / 10 kHz adjustable switching frequency
  • Six isolated programmable digital inputs
  • Three programmable relay outputs (250Vac / 1A)
  • Two isolated programmable analog inputs
  • Two programmable analog outputs
  • Protective features: Over current, motor overload, drive over temperature, output phase-to-phase and phase-to-ground short circuit, DC bus over and under voltage, power supply under voltage and phase loss and external fault
  • Control features: Linear and “S” amp acceleration and deceleration, local/remote control, DC braking, torque boost, motor slip compensation, electronic pot, preset speeds, adjustable V/Hz profi le, maximum and minimum adjustable motor speed limits, three skip frequencies, adjustable output current limit, JOG, ride-thru, fl ying start and PID regulator
  • Display readings: Motor speed, frequency, voltage, current and torque, output power (kW), last four faults, drive status, digital and analog I/O status, hours powered and hours running
  • Ambient: 32ºF (0ºC) to 104ºF (40ºC), 3300 ft (1000m) altitude, 90% humidity, non- condensing
    • Write a Review

    Technical Specifications

    Product Information

    WEG CFW09 Series

    WEG CFW09 Series Sensorless Vector Inverter

    The WEG CFW09 Series of Variable Frequency Drives incorporates the world's most advanced technology in drives for three-phase AC induction motors. The Vectrue Technologyâ„¢ represents a significant innovation, allowing this generation of WEG VFD's to combine Volts/Hertz, Sensorless Vector and Closed Loop Vector (with encoder) control techniques all in one product. In addition, WEG's exclusive Optimal Brakingâ„¢ technology eliminates the need for the dynamic braking resistor in some applications allowing a simpler, more compact and economic solution.

    Features:

    Standard Features

    Drive Details

    Manufacturer
    WEG

    Series
    CFW09

    Model
    CFW-090130TDDBZ

    Condition
    New

    Constant/Variable Torque
    CT

    Horse Power
    CT: 50 HP
    VT: 50 HP

    Maximum Amps
    CT: 130 A
    VT: 150 A

    Input
    3-Phase
    200-240V

    Output
    3-Phase
    200-240V

    Dimensions
    Height: 26.60 in
    Width: 13.20 in
    Depth: 11.80 in

    Enclosure
    NEMA 1
