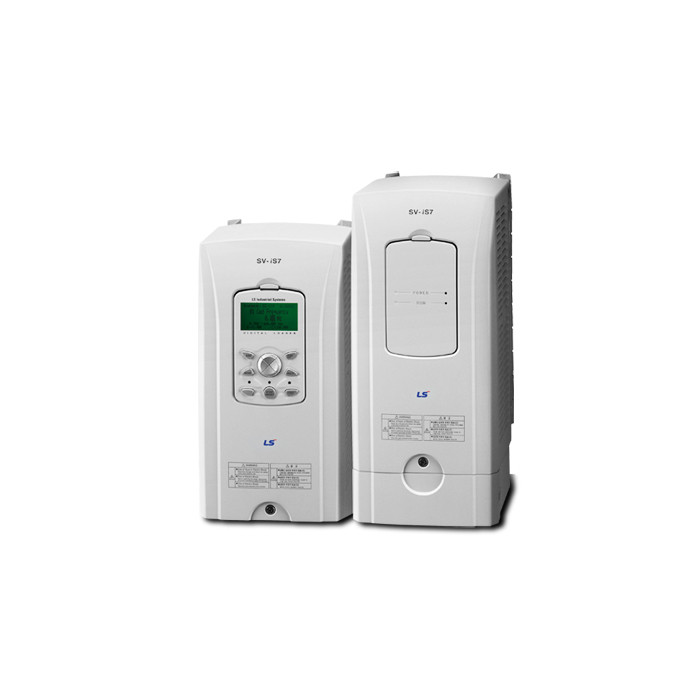

600HP & 500HP 460V LS Electric iS7 VFD, Inverter, AC Drive SV3150IS7-4SO (SV3150IS7-4SO)

Brand:
LS
Model:
SV3150IS7-4SO
Condition:
New
0 Customer Reviews
Out Of Stock
List Price:  $47,510.14
Online Price: $35,632.61
Adding to cart… The item has been added
  • Constant torque / Variable torque dual rating
  • Selectable V/f, V/f PG, sensorless vector, sensored vector
  • 150 MIPS(million instructions per second) high speed DSP
  • High performances and functions
  • Easy to control: Easy Start Mode, User and Macro group, Multi Function Key
  • 2nd motor sensorless control and parameter setting
  • Available IP54 enclosure as built-in option
  • Built-in RS485(LS Bus / Modbus RTU) communication
  • Wide graphic LCD keypad (6 different languages)

Technical Specifications

Model:
SV3150IS7-4SO
Brand:
LS
Product Condition:
New
Warranty:
2 Year
Horsepower Rating:
500 HP
Horsepower Rating:
600 HP
HP Rating @ 110% OL:
600 HP
HP Rating @ 150% OL:
500 HP
Rated Amps:
613 A
Amp Rating @ 110% OL:
731 A
Amp Rating @ 150% OL:
613 A
Rated Voltage:
460 V
Rated Input Frequency:
60 Hz
Output Voltage:
460 V
Output Amperage Rating:
613 A
Phase Rating:
3 Phase Input - 3 Phase Output
Constant Torque / Variable Torque:
Variable Torque/Constant Torque
Phase:
Three Phase
Enclosure Rating:
IP 21
Series:
iS7
Rated Amps:
731 A
Height:
51.28 in
Width:
36.30 in
Depth:
19.49 in

Product Information

LS iS7 Series

The iS7 generates a more powerful performance through its superior V/F control, V/F PG, slip compensation, and sensorless vector control. The iS7 focuses on a user-friendly interface and environment-friendly features including a wide graphic LCD keypad, user & macro group support, electro-thermal functions for motor protection, and protection for input/output phase loss.
