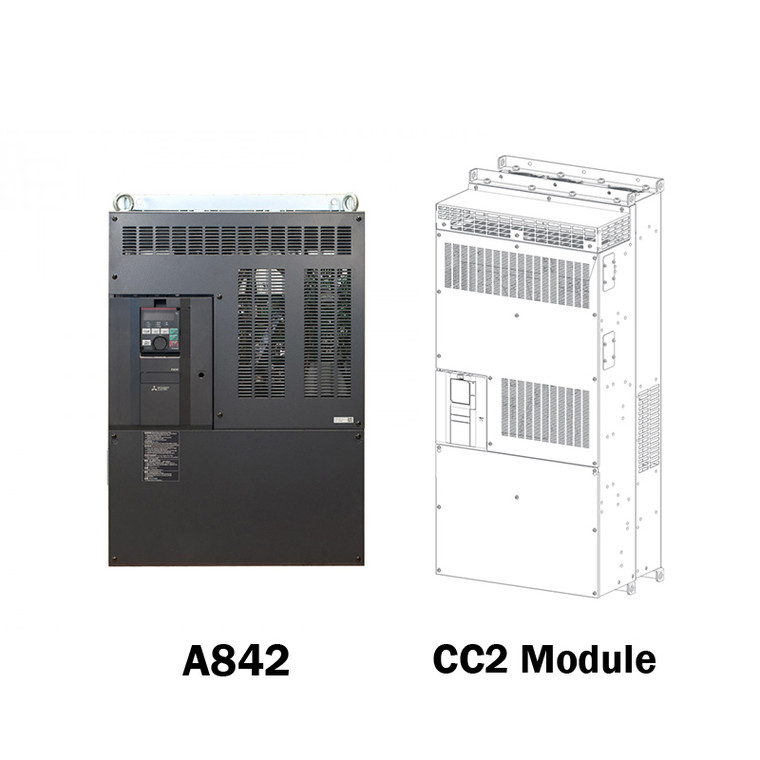

500HP 460V Mitsubishi A800 VFD, Inverter, AC Drive FR-A842-07700-1-U6+FR-CC2-H315K-60 (FR-A842-07700-1-U6+FR-CC2-H315K-60)

500HP 460V Mitsubishi A800 VFD, Inverter, AC Drive FR-A842-07700-1-U6+FR-CC2-H315K-60 (FR-A842-07700-1-U6+FR-CC2-H315K-60)

Brand:
MITSUBISHI
Model:
FR-A842-07700-1-U6+FR-CC2-H315K-60
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
$53,473.00
Online Price: $42,778.40
Adding to cart… The item has been added
  • High Speed Response: 50Hz
  • Wide Speed Range: 200:1 speed range open loop, 1500:1 closed loop speed range
  • Extended Maximum Speed: FR-A800 VFDs can drive high speed motors at up to 590Hz
  • IPM Motor Control: FR-A800 VFDs can drive the new generation IPM (Internal Permanent Magnet) motors, such as the Marathon 'SyMAX' series.
  • Safety Stop: FR-A800 is a SAFETY drive. 'STO' capability enables SIL2/PLd category emergency stops.
  • Compatible with USB Stick: VFD settings can be easily uploaded or downloaded and 'black box' operating data at the time of a drive trip can be copied for diagnosis using the FR-Configuration software.
  • GOT interface: Automatic connectivity to GOT 2000 series GOTs without the need to change any parameters.
  • Improved PLC: FR-A800 has a new internal PLC based around the Mitsubishi 'L series' processor. Instructions in the form of 'Function Blocks' can now be used.
  • Conformal Coating: All FR-A800 VFDs have Conformal Coated boards as a standard.
  • Separate rectifier stage: For drives over 500 HP - greater system flexibility.
Write a Review

Technical Specifications

Product Information

MITSUBISHI A800 Series

The FR-A800 Series is Mitsubishi Electric's flagship inverter solution that delivers multi-use performance, accuracy and system flexibility in an ultra reliable hardware package designed for industrial use.

Standard Features

Dimensions:

P frame: (H) 52.4 (W) 21.3 (D) 17.3
Q frame: (H) 62.2 (W) 26.8 (D) 17.3
R frame: (H) 52.4 (W) 23.6 (D) 17.3
S frame: (H) 62.2 (W) 23.6 (D) 17.3

Download Manual
