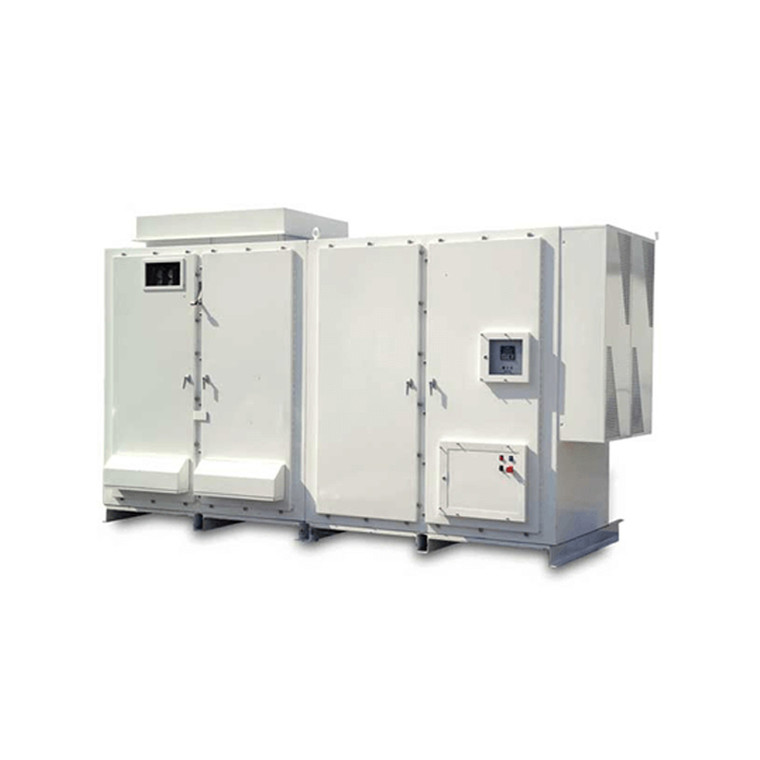

500HP 4160V Toshiba MTX VFD, Inverter, AC Drive MX40AN44050AAA (MX40AN44050AAA)

500HP 4160V Toshiba MTX VFD, Inverter, AC Drive MX40AN44050AAA (MX40AN44050AAA)

Brand:
TOSHIBA
Model:
MX40AN44050AAA
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
  • Outdoor Enclosure Design
  • Three Cables In, Three Cables Out
  • Distribution-Quality Lightening Arrestors as Standard
  • 36-Pulse Harmonic Cancellation Complies with IEEE-519 1992
  • Higher True Factor (0.96) than Running Motors Across-the-Line
  • Provides Easy Monitoring & Maintenance through Advanced User Interface Design
  • UL-Rated Rainproof (NEMA 3R) Enclosure
  • Lowers Cost of Ownership from Rated Full-Load Operation at -25° to 50° C
  • Allows for Standard Motors to be Used in Conjunction with Drive Without Special Motor Insulation
Write a Review

Technical Specifications

Product Information

TOSHIBA MTX Series

Toshiba’s MTX NEMA 3R outdoor medium voltage adjustable speed drive (ASD) is one of the most technologically advanced drives in the industry. Offering a cutting-edge enclosure design and power section technology, this drive is the singular choice manufactured specifically for outdoor housing in remote areas or applications where a building is not present. Regardless of the environmental settings, the MTX can be installed anywhere without needing an indoor floor to be housed.

Standard Features

  • 100% Continuous Overload Rating, 115% for 60 Seconds
  • NEMA 3R Enclosure
  • Seven Discrete Digital Input Terminals with Programmable Functions
  • Five Available Digital Programmable Outputs
  • Two Analog Inputs; Isolation Tranducer Required
  • Eight Analog Outputs; Isolation Transducer Required
  • Medium Voltage IGBT Technology
  • EOI: Plain-English LCD Display
  • Ambient Temperature: -4° to 122° F (-20° to 50° C)
  • Altitude: Up to 1000 Meters without Derate (4500 Meter Option Available)
  • Humidity: 95% Non-Condensing
  • Standards & Compliances: NEC, NEMA, UL Listed in US & Canada, ANSI, & American
