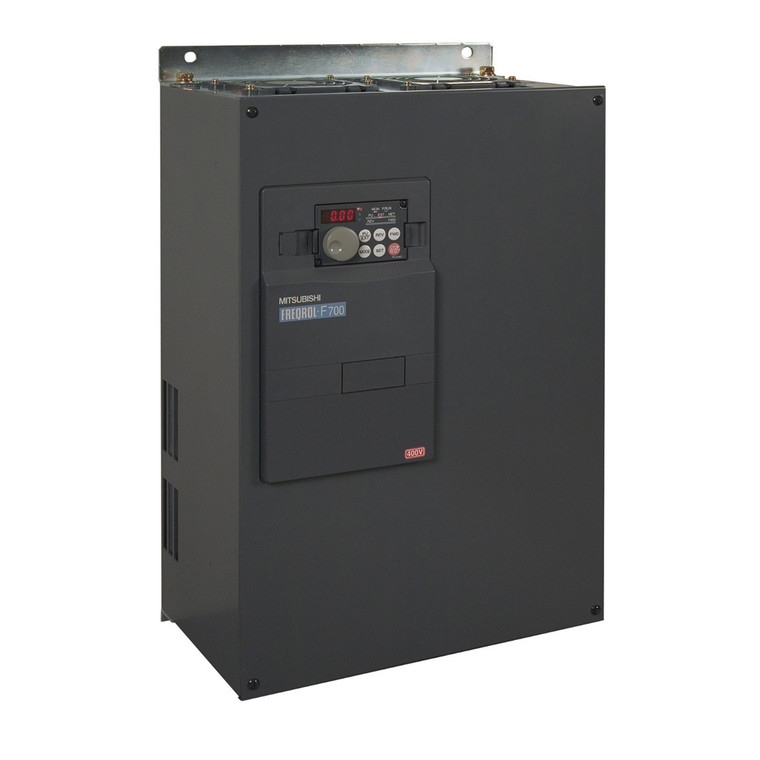

450HP 480V Mitsubishi VFD, Inverter, AC Drive FR-F740-05470-NA (FR-F740-05470-NA)

450HP 480V Mitsubishi VFD, Inverter, AC Drive FR-F740-05470-NA (FR-F740-05470-NA)

Brand:
MITSUBISHI
Model:
FR-F740-05470-NA
Condition:
New Surplus
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
List Price:  $30,875.00
Online Price: $24,882.99
Adding to cart… The item has been added
  • NEMA 1 UL Type 1 Enclosure Designs: Drive can be mounted as a stand-alone unit where required. (Plenum rated)
  • Built-in BACnet MS/TP
  • Built-in PLC; programs using GX Developer
  • Two I/O cards can be installed simultaneously
  • Remote I/O capability: All the drive I/O can be read or controlled over a network
  • Includes Removable FR-DU07 control unit with a digital dial that can be used as a speed potentiometer
  • Optional FR-PU07-01 keypad can be mounted remotely, display HAND/AUTO, and display the value of three monitors
  • Optimum Excitation Control for increased energy savings when motor is not loaded
  • 3 user programmable skip frequencies
  • Windmill start: Catch a reverse spinning load
  • Pre-charge mode
  • PID sleep mode
  • Second PID function
  • Regeneration avoidance
  • Standard RS-485 communications
  • Mitsubishi or Modbus RTU protocol
  • Built-in EMC filter: Conforms to EN61800-3 2nd environmental
  • UL Listed for single phase input
Write a Review

Technical Specifications

Product Information

MITSUBISHI F700 Series

F700
Download Manual
