Technical Specifications
Model:
C104040-1
Brand:
Saftronics
Product Condition:
New Surplus
Horsepower Rating:
40 HP
Horsepower Rating:
50 HP
HP Rating @ 110% OL:
50 HP
HP Rating @ 150% OL:
40 HP
Rated Amps:
64 A
Amp Rating @ 110% OL:
71 A
Amp Rating @ 150% OL:
64 A
Rated Voltage:
460 V
Output Voltage:
460 V
Output Amperage Rating:
64 A
Phase Rating:
3 Phase Input - 3 Phase Output
Constant Torque / Variable Torque:
Variable Torque
Phase:
Three Phase
Enclosure Rating:
UL Type 1
Height:
8.27 in
Width:
20.87 in
Depth:
10.91 in
Product Information

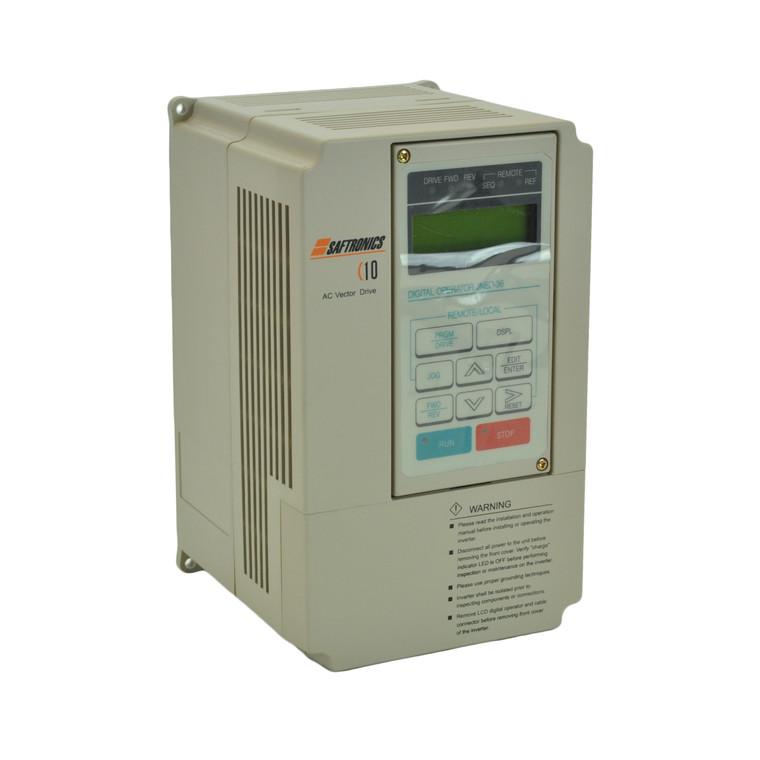

Saftronics C10 Series
When versatility is needed across a range of customized OEM applications, the C10 series can be modified and personalized to your unique application using its Onboard Application Software. The C10 series drive has a strong set of standard attributes that are ideal for industrial situations.
Standard Features
- 400Hz maximum output frequency
- 0.5% Speed control accuracy
- Overload protection of 150% for up to 1 minute
- 3 Programmable analog inputs
- 2 Programmable analog outputs
- 8 Digital inputs (sink or source)
- 2 or 3 wire control
- 3 digital outputs
- 16 preset speeds
- Speed search
- RS-485 Modbus RTU
- DC injection baking
- Over/under torque detection
- Power loss ride-thru
- 33 monitoring functions
- Fault history (up to 4)
- Onboard application software
- Sensorless wector, V/Hz, and V/Hz with PG feedback control modes
- Digital Pulse Train Input (0 to 32 KHz)
- Motor auto tuning for optimum motor performance
- PID Mode with sleep function
- Graphical LCD operator interface with copy function
- Built-in braking transistor
